At a glance data:
Engine Model:
Cat 3512E
Overview

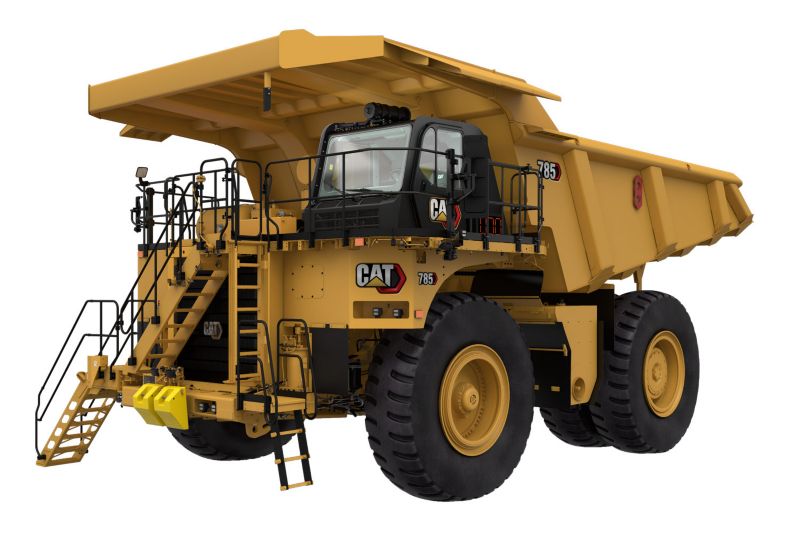

The 785 Large Mining Truck was Caterpillar’s first entry into the mining industry more than three decades ago and has been a proven performer on sites around the world ever since. And now it’s the first to combine a game-changing level of efficiency with industry-leading physical availability to deliver the next generation of productive hauling. It all starts with the operator, who sits in a state-of-the-art environment designed for efficiency and equipped with features that increase comfort, automate functions, provide real-time information and boost confidence. The 785 also delivers significant improvements in serviceability and reliability, enhanced connectivity and easier technology integration. These improvements — and more — take an already proven truck to the next level of productivity.
Category:
Mining Trucks
Category:
Mining Trucks
Brand:
Cat
Brand:
Cat
Engine
Gross Power - SAE J1995:
1600hp
Net Power - SAE J1349:
1509hp
Engine Model:
Cat 3512E
Emissions Rating:
Fuel Optimized
Bore:
6.7in
Stroke:
8.5in
Displacement:
3573in³
Note (1):
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2):
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Note (3):
Additional fuel optimized selectable power ratings: 1,450 hp
Weights - Approximate
Nominal Rated Payload (33.00R51 Tires):
153ton (US)
Rated Gross Machine Weight (33.00R51 tires):
550000lb
Nominal Rated Payload (36.00R51 Tires):
157ton (US)
Rated Gross Machine Weight (36.00R51 tires):
564000lb
Chassis Weight (33.00R51 Tires):
186799lb
Chassis Weight (36.00R51 Tires):
193192lb
Body Weight:
57779lb
Note (1):
Consult your tire manufacturer for maximum tire load
Note (2):
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3):
Body weight varies depending on body selection and configuration.
Weight Distributions - Approximate
Front Axle - Empty:
48%
Rear Axle - Empty:
52%
Front Axle - Loaded:
33%
Rear Axle - Loaded:
67%
Note:
Weight distributions optimized with Cat body.
Final Drives
Type:
Double reduction, planetary with full floating axles.
Differential Ratio:
2:10:01
Planetary Ratio:
10.83:1
Total Reduction Ratio:
22.75:1
Transmission
Forward - 1:
7.4mile/h
Forward - 2:
10.0mile/h
Forward - 3:
13.7mile/h
Forward - 4:
18.5mile/h
Forward - 5:
25.0mile/h
Forward - 6:
35.6mile/h
Reverse:
7.2mile/h
Top Speed - Loaded:
35.6mile/h
Note:
Maximum travel speeds with standard 33.00-R51 tires.
Tires
Standard Tire:
33.00R51
Optional Tire:
36.00R51
Rims:
610 mm (24") Rims (standard). 660 mm (26") Rims (optional).
Note (1):
Quick Change Rims optional.
Note (2):
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Braking System
Service Brakes:
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area:
9487in²
Rear - Wet Disc Brake Surface Area:
13908in²
Standards:
Service and Secondary: ISO 3450:2011
Parking Brake:
Four corner, multi disc, spring applied, hydraulically released
Capacity - MSD II - 100% Fill Factor
Struck:
72 m^3 / 94 yd^3
Heaped (SAE 2:1):
99 m^3 / 129 yd^3
Note:
Consult your local Cat dealer for body recommendations.
Body Hoists
Type:
Twin, two-stage hydraulic cylinders with snubbing valve.
Pump Flow - High Idle:
223gal/min
Relief Valve Setting - Raise:
2500psi
Body Raise Time - High Idle:
15.0s
Body Lower Time - Float:
15.6s
Body Power Down- High Idle:
15.5s
Suspension
Type:
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
Effective Cylinder Stroke - Front:
12.6in
Effective Cylinder Stroke - Rear:
6.5in
Rear axle - Oscillation:
+/- 5.4 degrees
Service Refill Capacities
Fuel Tank:
410gal (US)
Diesel Exhaust Fluid Tank:
36gal (US)
Cooling System:
126gal (US)
Crankcase:
54gal (US)
Front Wheels - Each:
7.1gal (US)
Differential - Final Drives:
139gal (US)
Steering Tank:
29gal (US)
Steering System - Includes Tank:
31gal (US)
Brake/Hoist Tank:
135gal (US)
Brake Hoist System - Includes Tank:
143gal (US)
Torque Converter - Transmission System - Including Sump:
46gal (US)
Cab
Air Conditioning:
HFC - 134A refrigerant: 24,500 Btu/h
Heater / Defroster:
33300Btu/h
ROPS Standards (1):
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.
FOPS Standards:
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.
Sound
Sound Standards:
The operator sound pressure level, 77 dB(A) with direct drive and 75 dB9A) with optional clutch, tested to ISO 6396:2008.
Steering
Steer Angle:
25.1°
Turning Diameter - ISO 7457:1997 (33.00R51 tires):
96.6ft
Steering Standards:
ISO 5010:2019
Dimensions (All dimensions are approximate. MSD II Body, 33R51 tires, unloaded machine.)
Height - Top of ROPS:
17.09ft
Overall Body Length:
39.32ft
Inside Body Length:
27.29ft
Overall Length:
39.23ft
Wheel Base:
17ft
Rear Axle - Tail:
12.56ft
Ground Clearance:
3.29ft
Dump Clearance:
3.7ft
Loading Height - Empty:
17.39ft
Inside Body Depth - Maximum:
9.15ft
Overall Height - Body Raised:
39.48ft
Operating Width:
24.72ft
Centerline Front Tire Width:
15.91ft
Engine Guard Clearance:
3.41ft
Overall Canopy Width:
24.81ft
Outside Body Width:
22ft
Inside Body Width:
19.72ft
Front Canopy Height:
19.8ft
Rear Axle - Clearance:
3.25ft
Centerline of Rear Dual Tire Width:
14.06ft
Overall Tire Width:
20.59ft
Standard Equipment
electrical
- 24V electrical system, low maintenance batteries (2) 93 amp-hour
- Alarm, backup
- Brushless alternator, 225 amp
- Ground accessible power control box: Ethernet VIMS� port and VIMS lamp; Engine starter; transmission and battery lockouts
- Jump start/battery charge receptacle
- LED payload indicator lamps
- LED Lighting system: Back-up and hazard lights, Curb lights, (one) RH side, (one) LH side, Turn signals (front and rear), Engine compartment lights, Headlights with low-high beam selector, Ladder light and service deck lights, Stop/tail lights
fluids
- Extended Life Coolant to � 35� C (� 30� F)
operator environment
- 5V USB charging port
- 12V auxiliary power connection
- Cup holders
- Diagnostic connection port COM3 and Ethernet
- Delayed Engine Shutdown
- Dome courtesy light and map lights
- Entertainment radio ready: Speakers, Optional Antenna (AM/FM/WB/satellite radio), Radio mounting provisions and 12V power supply
- Fire suppression ready
- Floor mat, multi-piece & replaceable
- Gauges and indicators panel: Critical oil and coolant temperatures; Fuel and DEF level (if applicable); Engine system, brake and transmission fault indicators; Operator selectable max. machine speed by rotary dial; Speedometer, Tachometer
- Heated mirrors, right and left
- Hoist, body control
- Interactive touchscreen vehicle information display: Day/night mode; Action alarm; Quad gauge display
- Operator and trainer air suspension seats
- Operator Door Power Window
- Provision for customer accessory mounting
- Push button secure start
- Retractable front visor
- ROPS cab, insulated/sound suppressed
- Stairway and walkway access, 600 mm (24 in)
- Steering wheel, tiltable, telescopic
- Self-filling to windshield washer fluid from AC condensate
- Storage locations for operator gear
- Three point seat belt for operator seat
- Windshield wiper, intermittent control / washer
- Unitized hydraulic powered HVAC with automatic temperature control
- Ventilated operator seat
power train
- 33R51 power train with standard rims
- Cat 3512E engine: Automatic engine and DEF thermal management (if applicable); Automatic low voltage idle management; Air cleaner with precleaner (two); Turbocharging (four) with air-to-air aftercooler; Mechanical Electronic Unit Injector (MEUI�-A) fuel system; Automatic starter protection; Automatic ether starting aid
- Hydraulic braking system: Automatic Resistive Braking control (ARC), adjustable and automatic; Brake release motor (towing); Engine over speed protection; Extended life brake disc material; Hill start assist/Anti roll back strategy; Oil-cooled, multi-disc (front and rear) � Service, Resistive braking, parking, secondary; Park brake integrated with gear selector
- Transmission :Six-speed, automatic power shift with Electronic Clutch Pressure Control (ECPC); Advanced Productivity Electronic Control Strategy (APECS); Body-up reverse neutralizer; Body-up shift inhibitor; Downshift/reverse shift inhibitor; Directional shift management; Enhanced Traction Control System; Programmable top gear; Oil level sensor; Neutral coast inhibitor; Neutral start switch; Lock-up torque converter; Rear axle continuous lubrication/filtration
other equipment
- Auxiliary "buddy" dumping quick connect
- Auxiliary connection 'user defined shutdown'
- Auxiliary steering quick connect (towing)
- eOMM
- Fast fill fuel and DEF remote fill system
- Guards for rotating components
- Hill Start Assist
- Hydraulic Filters, 1,000 hours
- Remote flash software and troubleshooting
- Secondary steering (automatic)
- Tie off points
- Tow hooks (front) and tow pin (rear)
- Sight glasses for hydraulic oils
- S�O�S? ports
- Vital Information Management System (VIMS)
cat technology products
- Cyber security
- Integrated object detection system with touchscreen display
- Tire Payload Monitoring System 2 (TPMS 2)
- Product Link� Elite
Optional Equipment
electrical
- Auxiliary rear work lights, (one) LH side
- Digital Payload Display
- LED Lighting system: Additional lighting package, Auxiliary VIMS, Body rear, Seat & park brake
- Workshop horn
truck bodies
- MSD II body: 100 m3 (131 yd3)
- Dual slope body: 78 m3 (102 yd3)
- Body specific side wall and tail extensions
- Customizable body liner packages
- Body heat exhaust
- Rock ejectors
- Rear body lighting group: Directional signals, Stop/tail lights
fluids
- Extended Life Coolant to � 50� C (� 58� F)
operator environment
- Emergency stop
- Deluxe Cab: Advanced cabin filtration system; Catwalk and handrails for rear cab access; Heated, cooled and ventilated front seat; Power right side window; Suspended companion seat; Storage tray
power train
- No air � electric starter with 93-amp hour batteries (four), electric horn and automatic lubrication system
- Hydraulic braking system: Advanced ground control with Anti-lock Braking System (ABS) and Dynamic Stability Control (DSC)
- Variable speed fan drive
- Transmission: Engine pre-lubrication system; Rear axle continuous lubrication/filtration with cooler
- Turbine air starter with air tank, air horn and automatic lubrication system
other equipment
- 2560 L (676 gal) fuel tank (non-Tier 4)
- Body heat exhaust
- Bumper towing � center pin kit
- Cold weather start (block heater)
- Communication Ar � Minestar� radio
- Fire extinguisher, portable
- Five piece crankcase guards
- Fuel heater, fuel water separator
- Fuel tank mud guard
- Gauge, brake wear indicator
- Ground accessible fluid service center, hydraulic and coolant
- Hub odometer, kilometers
- Powered access stairway
- Rim Diffuser
- Wheel chocks
- Wireless Electronic Technician (ET)
- Working at heights protection
cat technology products
- Cruise control
- 360 degree surround view camera
- 4G cellular/satellite dual mode
- Connectivity bundle (includes: wireless operator ID, bluetooth key FOB to start)
- Driver Safety System (DSS) 4.0 Ready
- Minestar GPS
- Minestar communication group (enables: Minestar Fleet, Aux, and Truck Spotting)
- Oil Renewal System (ORS) (non-Tier 4)
- Road Analysis Control (RAC)
- Minestar Command Autonomous-ready
