At a glance data:
Standard Operating Weight with ROPS:
5546lb
Maximum Operating Weight with Cab:
5546lb
Static Linear Load:
66.2lb/in
Maximum Operating Weight with ROPS:
6646lb
Overview

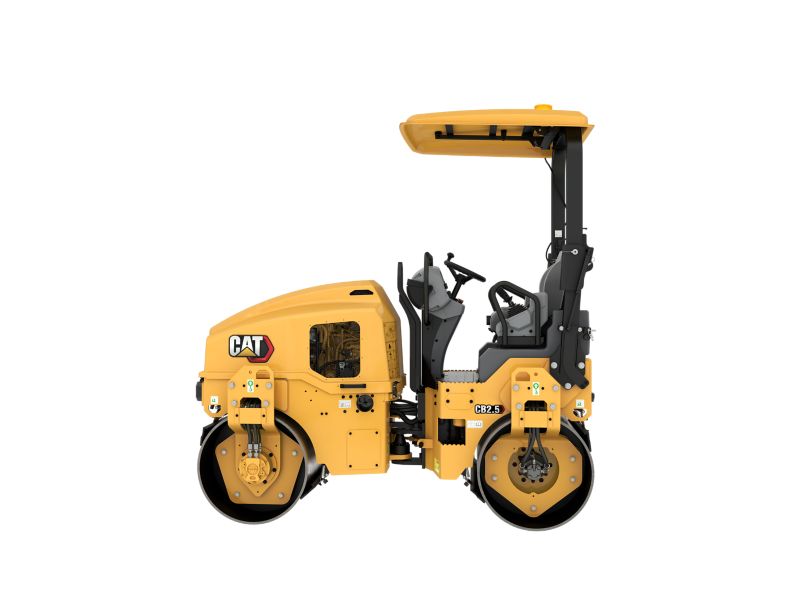

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Standard Operating Weight with ROPS:
5546lb
Maximum Operating Weight with Cab:
5546lb
Static Linear Load:
66.2lb/in
Maximum Operating Weight with ROPS:
6646lb
Maximum Weight at Front Drum:
2607lb
Maximum Weight at Rear Drum:
2939lb
Dimensions
Compaction Width:
39.4in
Operating Specifications
Travel Speed - Maximum:
7.5mile/h
Turning Radius - Inside Drum Edge:
103.9in
Ground Clearance:
11.2in
Static Linear Load:
66.2lb/in
Static Linear Load - With Cab:
74.7lb/in
Turning Radius - Outside Drum Edge:
143.3in
Curb Clearance:
17.8in
Drum Offset:
2in
Engine
Engine Power (1):
48.2hp
Engine Model:
C1.7T
Dimensions
Overall Width:
43.8in
Drum Diameter:
28.3in
Overall Length:
99.2in
Drum Width:
39.4in
Wheel Base:
70.9in
Height - ROPS:
106in
Vibratory System
Nominal Amplitude - High:
0.02in
Centrifugal Force - Maximum:
6697lb
Frequency:
64Hz
Service Refill Capacities
Fuel Tank Capacity:
14.37gal (US)
Water Spray Tank Capacity:
52.8gal (US)
Standard Equipment
operator environment
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
compacton system
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
powertrain
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
technology
- Telematics
electrical
- LED Working Lights
other
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
operator environment
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
compacton system
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
powertrain
- Traction Control
technology
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
electrical
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
other
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
