At a glance data:
Operating Weight - With Cab:
27900lb
Operating Weight - With ROPS/FOPS Canopy:
27560lb
Weight - Drum with ROPS/FOPS Canopy:
16955lb
Weight - Drum with Cab:
17051lb
Overview

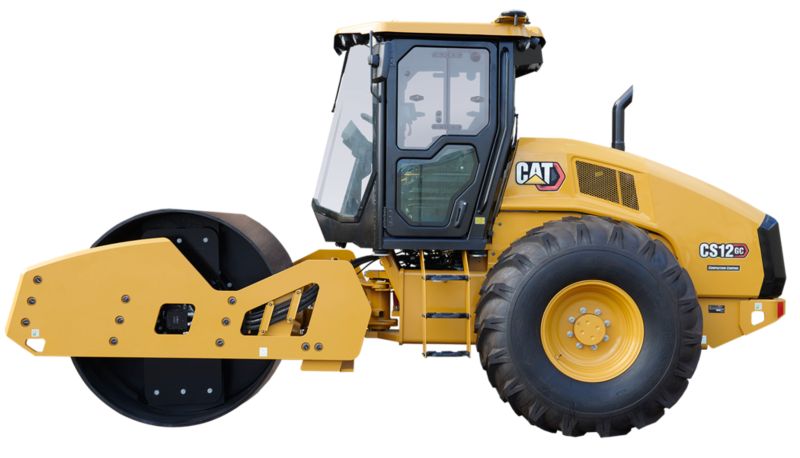

GC Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations.
Category:
Vibratory Soil Compactors
Category:
Vibratory Soil Compactors
Brand:
Cat
Brand:
Cat
Weights
Operating Weight - With Cab:
27900lb
Operating Weight - With ROPS/FOPS Canopy:
27560lb
Weight - Drum with ROPS/FOPS Canopy:
16955lb
Weight - Drum with Cab:
17051lb
Operating Specifications
Compaction Width:
84in
Curb Clearance:
19.4in
Ground Clearance:
20.4in
Turning Radius - Inside Drum Edge:
12.7ft
Travel Speed - Maximum:
6.8mile/h
Static Linear Load - With ROPS/FOPS:
202.9lb/in
Engine
Gross Power:
120.7hp
Engine Model:
Cat C3.6
Net Power - ISO 9249:
112.2hp
Net Power - SAE J1349:2011:
111.2hp
Stroke:
4.7in
Bore:
3.9in
Dimensions
Overall Length:
18.7ft
Overall Width:
7.5ft
Drum Width:
84in
Height - With ROPS/FOPS or Cab:
9.8ft
Drum Diameter:
60.4in
Optional Blade Height:
27.1in
Wheel Base:
9.8ft
Vibratory System
Nominal Amplitude - High:
0.079in
Nominal Amplitude - Low:
0.039in
Centrifugal Force - Maximum:
56202lbf
Centrifugal Force - Minimum:
33497lbf
Vibratory Frequency - Ecomode:
28.6-31.5 Hz
Vibratory Frequency - Ecomode:
1716-1890 vpm
Vibratory Frequency - Standard:
30-33 Hz
Vibratory Frequency - Standard:
1800-1980 vpm
Service Refill Capacities
Fuel Tank Capacity:
56.3gal (US)
Tires
Tires:
23.1 x 26
Sustainability
Recyclability:
96
Standard Equipment
operator environment
- ROPS/FOPS Canopy with Handrails/Guardrails, Floor Mat
- Vinyl Adjustable Seat, Seat Belt
- Adjustable Tilting Steering Column
- 12-volt Power Outlet
vibratory system
- Dual Amplitude, Dual Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Rear Adjustable Steel Scraper
- Smooth Drum
power train
- Cat C3.6 Diesel Engine, 4 cylinder
- Single Propel Pump
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
electrical
- 12 volt Electrical System
- 150 ampere Alternator
- 900 Cold-cranking Amps Battery Capacity
standard
- ProductLinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- High Ambient Temperature Oil Factory Fill
Optional Equipment
operator environment
- ROPS/FOPS Cab with Climate Control
- Deluxe High-back Air-ride seat (Cab)
- Sun/Debris Shields (Canopy)
- Cab Internal Roll-down Sun Screen (Cab)
- Rear View Camera with Color Touchscreen Display
- Sound Reduction Kit
vibratory system
- Padfoot Shell Kit (oval or square pads available)
- Dual Adjustable Steel Scrapers
- Dual Adjustable Polyurethane Scrapers
power train
- Transmission Guard
technology solutions
- Measure - Compaction Meter Value (CMV)
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
other
- XT Weight Kit
- Upgraded LED Light Package
- Amber Rotating Beacon
- Flotation Tread or Lug Tread Tires
