At a glance data:
Net Power:
814hp
Engine Model:
Cat® C32B
Emissions:
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed:
1750 rpm
Overview

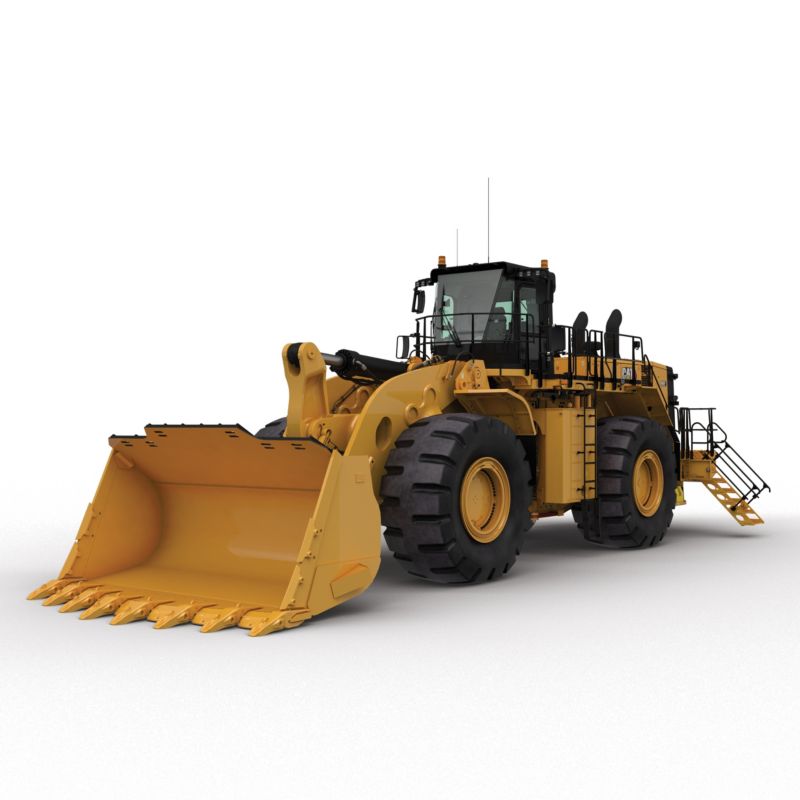

The Cat® 992 Large Wheel Loader has set the standard in its size class for more than 50 years, delivering industry-leading productivity, unparalleled reliability and long life. Today’s 992 raises the bar. Compared to the 992K, the new 992 is up to 48% more efficient and 32% more productive, thanks to higher payload for improved pass match, increases in rimpull and breakout force, and an optimized linkage design. Extended component replacement intervals plus increased filter and turbo life help reduce maintenance costs. These improvements — and many more — combine to provide significant savings over the life of the machine for the lowest owning and operating costs in the industry. With both standard and high-lift configurations, the 992 offers the ideal pass match for fleets of Cat 775, 777 and 785 trucks.
Category:
Large Wheel Loaders
Category:
Large Wheel Loaders
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Net Power:
814hp
Engine Model:
Cat® C32B
Emissions:
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed:
1750 rpm
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard:
900hp
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient:
937hp
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard:
907hp
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient:
944hp
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard:
884hp
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient:
921hp
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard:
893hp
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient:
931hp
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard:
814hp
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient:
814hp
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard:
823hp
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient:
823hp
Bore:
5.7in
Stroke:
6.4in
Displacement:
1963.5in³
Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm:
3514ft·lbf
Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm:
3555ft·lbf
Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm:
3537ft·lbf
Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm:
3570ft·lbf
Operating Specifications
Operating Weight:
233430lb
Rated Payload - Standard:
25.5ton (US)
Rated Payload - Standard (Material Handler):
30ton (US)
Rated Payload - High Lift:
22.5ton (US)
Rated Payload - High Lift (Material Handler):
27ton (US)
Bucket Capacity Range:
11.5-24.5 m³ (15-32 yd³)
Cat Truck Match - Standard:
775/777
Cat Truck Match - High Lift:
785
Buckets
Bucket Capacities:
11.5-24.5 m³ (15-32 yd³)
Transmission
Transmission Type:
Cat Planetary Powershift
Forward - 1:
4.3mile/h
Forward - 2:
7.4mile/h
Forward - 3:
12.7mile/h
Direct Drive - Forward 1:
Disabled
Direct Drive - Forward 2:
8mile/h
Direct Drive - Forward 3:
14mile/h
Reverse - 1:
4.7mile/h
Reverse - 2:
8.1mile/h
Reverse - 3:
13.9mile/h
Direct Drive - Reverse 1:
5mile/h
Direct Drive - Reverse 2:
8.8mile/h
Direct Drive - Reverse 3:
15.3mile/h
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit:
Positive Flow Control
Lift/Tilt System - Pump:
Variable Displacement Piston
Maximum Flow at 2,165 rpm:
250gal/min
Relief Valve Setting - Lift/Tilt:
5000psi
Lift Cylinder - Bore:
9.3in
Lift Cylinder - Stroke:
63.5in
Tilt Cylinder - Bore:
11.5in
Tilt Cylinder - Stroke:
41.5in
Hydraulic Cycle Times
Rack Back:
2.3s
Rack Back - High Lift:
2.3s
Raise:
9s
Raise - High Lift:
9s
Dump:
2.6s
Dump - High Lift:
2.6s
Float Down:
3.2s
Float Down - High Lift:
3.2s
Total Hydraulic Cycle Time:
17.1s
Service Refill Capacities
Fuel Tank:
385.7gal (US)
Cooling Systems:
59.4gal (US)
Crankcase:
31.7gal (US)
Transmission:
51.5gal (US)
Differential - Final Drives - Front:
96.4gal (US)
Differential - Final Drives - Rear:
96.4gal (US)
Hydraulic System Factory Fill (Implement):
104.1gal (US)
Hydraulic Tank - Implement:
60.2gal (US)
Hydraulic Factory Fill (Steering):
32.5gal (US)
Hydraulic Tank (Steering Tank Only):
26.3gal (US)
Axles
Front:
Fixed
Rear:
Trunnion
Oscillation Angle:
±9°
Brakes
Brakes:
ISO 3450:2011
Hydraulic System - Steering
Steering System - Circuit:
Pilot, Load Sensing
Steering System - Pump:
Piston, Variable Displacement
Maximum Flow at 1,400-1,850 rpm:
70gal/min
Steering Cut Off Pressure:
4500psi
Total Steering Angle:
80°
Steering Cycle Times - Low Idle:
4.9s
Steering Cycle Times - High Idle:
3.1s
Cooling System
Ambient Capability Hydraulically Driven Demand Fan - Standard:
109.4°F
Ambient Capability, Hydraulically Driven Demand Fan - High:
131°F
Sound Performance - Standard
Note:
Machine Sound Level (ISO 6396:2008) - 116 dB(A)
Sound Performance - Suppression
Note:
Machine Sound Level (ISO 6396:2008) - 113 dB(A)
Dimensions - Standard Lift - Approximate
Ground to Top of Exhaust Stacks:
17ft
Ground to Top of ROPS:
18.3ft
Ground to Top of Hood:
13.1ft
Ground to Center of Front Axle:
4.3ft
Ground to Bumper Clearance:
3.8ft
Ground to Lower Hitch Clearance:
2.2ft
Reach - Maximum Lift:
8.2ft
Clearance at Maximum Lift:
15.2ft
B-Pin Height - Maximum Lift:
22.8ft
Maximum Overall Height - Bucket Raised:
30.8ft
Rear Axle - Centerline to Bumper:
13.5ft
Tread Width:
10.83ft
Rack Back Angle - Maximum Lift:
56.9 degrees
Dump Angle at Maximum Lift:
-49.5 degrees
Rack Back Angle - Ground Level:
40.2 degrees
Width - Over Tires - With Bulge:
14.74ft
Wheel Base:
19.3ft
Rack Back Angle - Carry:
48.9 degrees
Maximum Overall Length:
50.8ft
Front Axle Centerline to Bucket Tip:
18ft
Dimensions - High Lift - Approximate
Tread Width:
10.83ft
Rack Back Angle - Ground Level:
42.5 degrees
Dump Angle at Maximum Lift:
-48.1 degrees
Rack Back Angle - Maximum Lift:
56.2 degrees
Width - Over Tires - With Bulge:
14.75ft
Rack Back Angle - Carry:
51.6 degrees
Ground to Top of Exhaust Stacks:
17ft
Ground to Top of ROPS:
18.3ft
Ground to Top of Hood:
13.1ft
Ground to Center of Front Axle:
4.3ft
Ground to Bumper Clearance:
3.8ft
Ground to Lower Hitch Clearance:
2.2ft
Reach - Maximum Lift:
7.6ft
Clearance at Maximum Lift:
17.2ft
B-Pin Height - Maximum Lift:
24.5ft
Maximum Overall Height - Bucket Raised:
32ft
Rear Axle - Centerline to Bumper:
13.5ft
Wheel Base:
19.3ft
Maximum Overall Length:
51.6ft
Front Axle Centerline to Bucket Tip:
18.8ft
Standard Equipment
power train
- Engine, C32B
- Fuel priming pump (electric)
- Ground-level engine shutdown
- Engine air intake (above hood) precleaner
- Aluminum Modular Radiator (AMR)
- Automatic, ether starting aid
- Electronic throttle lock
- Impeller Clutch Torque Converter (ICTC) with lock-up clutch
- Rimpull control system
- Planetary powershift, 3F/3R electronic control transmission
- Delayed engine shutdown
- Oil-cooled, multi-disc, service brakes
- Electro-hydraulic parking brake
- Auto retarding controls
- Brake temp estimator
- Autoshift
linkage
- Standard lift (23 tonnes/25.5 tons face, 27.2 tonnes/30 tons loose)
efficiency
- Variable displacement implement pumps
- Variable displacement load-sensing steering
- Variable displacement cooling fan pump
- Torque converter lock-up clutch
- Bucket float
- Automatic bucket controls:
– Lift kickout
– Return-to-dig kickout - Default on-demand throttle (economy mode) with HP+ mode button
- Engine idle shutdown
electrical and lighting
- 150-amp alternator
- Four 1400 CCA batteries
- 10/15 amp, 24V to 12V converter
- Battery – single pole (master disconnect) isolator
- Emergency jump-start receptacle
- Starter and transmission lockout in bumper
- 24V starting and charging system
- Electric starters
- Live line indicators in service center
- LED warning lights (pattern selectable)
- LED lighting system:
– Two front- and rear-mounted LED turn signals
– Four forward-facing running lights
– Three forward-facing flood lights
– Four platform-mounted flood lights
– Two forward-facing high beams
– Four rear-facing floods
– Four stairway lights
– Two engine bay service lights
operator environment
- Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
- Bonded glass, tinted
- Trainer seat
- Dual-lever lift and tilt function controls
- Implement kickouts
- Air conditioner
- Cab pressure indicator
- Graphical touchscreen information display conveys real-time operating information and payload measurement
- Heater, defroster, auto temperature controls
- Gauge instrumentation with configurable widgets:
– Status indicators
– Wheel rev counter
– Simplified payload
– TPMS (optional)
– Bucket angle
– Coolant temperature
– Hydraulic oil temperature
– Fuel level
– Power train oil temperature
– Engine speed (tachometer)
– Transmission gear
– Ground speed
– Engine hour meter - Powered cab precleaner
- Operator presence status
- Starting/charging system malfunction
- Electronic OMM
- Operator controls help
- Two USB charging ports
- CB mounting, 12V/24V power and antenna
- 14-pin service port
- 12V power
- Selectable application profiles
- Entertainment radio mute
- Push-To-Start (PTS)
- Warning/indicator instrumentation
- Keypad control with indicator lights
- Dome light in cab
- Lunchbox and beverage holders
- Electro-hydraulic force feedback steering
- Vital Information Management System (VIMS™) with information display: external data port, cycle timer
- Coat hook
safety
- Ground-access ladders
- Rear-vision camera
- Front walkway around cab
- Tie-offs on ROPS
- Steering frame lock
- Stairways on both sides of the machine
- Platform toe kicks
- Retractable seatbelt, operator and trainer seat
- Back-up alarm
- Electric disc horns
- Implement lock switch
- Seatbelt warning
- Entertainment radio mute
machine control and guidance
- MineStar Health ready
MineStar GUIDE ready
MineStar Edge ready
cooling
- Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])
service
- Ground-level service center including:
– Implement and cooling fan oil level indicator
– Steering and brake oil level indicator
– Window washer fluid level indicator
– Transmission oil level indicator
– Fuel level indicator
– Engine oil level indicator
– Engine coolant level indicator
– Automatic lubrication system grease tank level indicator
– Starter lockout and LED
– Heavy-duty battery disconnect switch
– Stairway light switch
– Service lighting switch (if equipped)
– Fuel shutoff engine shutdown switch
– Engine oil fast-fill port
– Transmission oil fast-fill port
– Steering and brake hydraulic oil fast-fill port
– Steering and brake hydraulic oil drain port
– Engine coolant fast-fill port
– Implement and cooling fan hydraulic oil fast-fill port
– Implement and cooling fan hydraulic oil drain port
– Automatic lubrication system grease tank fill port
– 24V jump-start receptacle
– 12V power port
– 120V jacket water plug (if equipped)
– 240V jacket water plug (if equipped)
– VIMS key switch
– 14-pin service port
– Transmission lockout and LED - In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
- High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
- Implement pump efficiency monitoring
- Rock guards on linkage grease lines
- Cat O-ring face seal couplings
- Lockable service access doors
- Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
- Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
- Ground-level fast-fill fuel system
- Drawbar hitch with pin
- Cat XT™ hoses
- Left-side service center
- Oil sampling valves
- Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
- Rear access to cab and service platform
- Load-sensing steering
- Vandalism protection caplocks
- Cooling cleanout service access
- Telematics and Cat Electronic Technician service port in bumper
- Automatic Autolube filling shutoff valve
Optional Equipment
power train
- Advanced auto retarding controls with engine brake
linkage
- High lift (20.5 tonnes/22.5 tons face, 24.5 tonnes/27 tons loose)
electrical and lighting
- Dual pole battery isolator
- Six service lights
- Two hitch-mounted lights
operator environment
- Rubber-mounted, high-impact resistant solar control glass
- Trainer seat with suspension
- Joystick lift and tilt function controls
- Bluetooth®-enabled machine security
- Sun screen, pull down (front and rear)
- AM/FM/AUX radio
- AM/FM/AUX/USB/BT/CD/SAT radio
safety
- Powered ground-access stairs
- Side-vision cameras (270 degree)
- Cat Detect (rear object detection)
- Wheel chocks
- Secondary steering
- Electric trumpet field horn plus electric shop horn
- Fire suppression ready (tank mounting provision and provision for integration with machine electronics for monitoring faults or activation)
- Emergency stop system
cold weather
- Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])
- 120V or 240V coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
- Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
- Heated mirrors
machine control and guidance
- Cat Payload with Overload Prevention
- New Autodig Components:
– Tire slip prevention
– Lift stall prevention
– Tire set - Operator coaching
cooling
- High ambient package (recommended for site conditions that do not exceed 55° C [131° F])
rims and tires
- Rims – 914.4 mm (36") (36 × 45)
113.3 mm (4.5") flange
For use with 45/65R45 and 45/65-45 tires
Tires – 45/65R45
Tires – 45/65-45
spare rims
- 914.4 mm (36") (36 × 45) (4.5") flange
service
- Transmission and engine guards
- Diagnostic lines for easy troubleshooting access
- Product Link™ cellular
- Product Link (dual mode – satellite/cellular)
sound
- Sound-suppression package
load and carry or extensive tramming
- Ride control
Similar Products
988 Wheel Loader
Net Power:
814hp
Engine Model:
Cat® C32B
Emissions:
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed:
1750 rpm
990 Wheel Loader
Net Power:
814hp
Engine Model:
Cat® C32B
Emissions:
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed:
1750 rpm
988 XE Wheel Loader
Net Power:
814hp
Engine Model:
Cat® C32B
Emissions:
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed:
1750 rpm
