At a glance data:
Standard Operating Weight with ROPS:
5718lb
Static Linear Load:
61lb/in
Maximum Operating Weight:
6114lb
Compaction Width:
47.2in
Overview

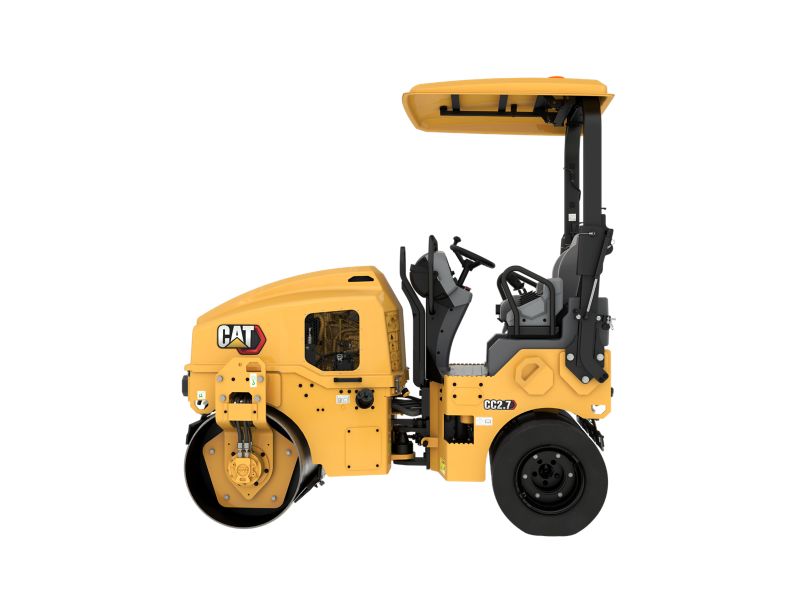

The CC2.7 is a 3 metric ton machine with a 1200 mm (47 in) front drum and 4 rear wheels. The combination compactor offers versatility with its 4 rubber tires that provide a kneading action for a smooth mat surface.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Standard Operating Weight with ROPS:
5718lb
Static Linear Load:
61lb/in
Maximum Operating Weight:
6114lb
Dimensions
Compaction Width:
47.2in
Operating Specifications
Turning Radius - Inside Drum Edge:
100in
Ground Clearance:
11.2in
Curb Clearance:
17.8in
Travel Speed - Maximum:
6.8mile/h
Static Linear Load:
66.2lb/in
Drum Offset:
2in
Number of Wheels:
4
Turning Radius - Outside Drum Edge:
147.2in
Engine
Gross Power:
48.2hp
Engine Power (1):
48.2hp
Engine Model:
C1.7T
Dimensions
Overall Width:
51.7in
Drum Width:
47.2in
Height - ROPS:
109.7in
Wheel Base:
70.9in
Overall Length:
99.2in
Drum Diameter:
28.3in
Vibratory System
Nominal Amplitude - High:
0.02in
Minimum Frequency:
3180VPM
Maximum Frequency:
3840VPM
Centrifugal Force per Drum - Maximum:
7929lb/ft
Service Refill Capacities
Water Spray Tank Capacity:
42.24gal (US)
Fuel Tank Capacity:
14.37Gal
Standard Equipment
operator environment
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
compacton system
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
powertrain
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
technology
- Telematics
electrical
- LED Working Lights
other
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
operator environment
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
compacton system
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 100 kg (220 lb)
technology
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
electrical
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
other
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
