At a glance data:
Standard Operating Weight with ROPS:
8362lb
Maximum Weight at Rear Drum:
4380lb
Maximum Weight at Front Drum:
3982lb
Maximum Operating Weight with ROPS:
9885lb
Overview

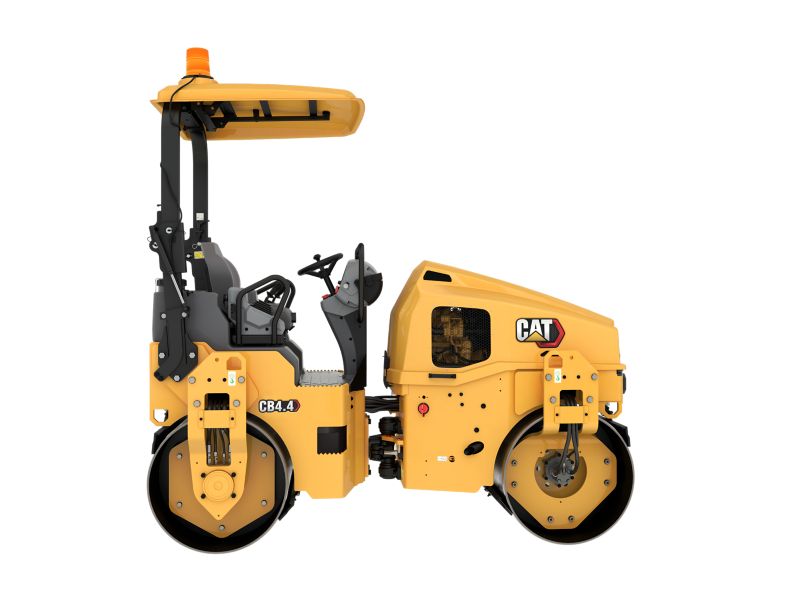

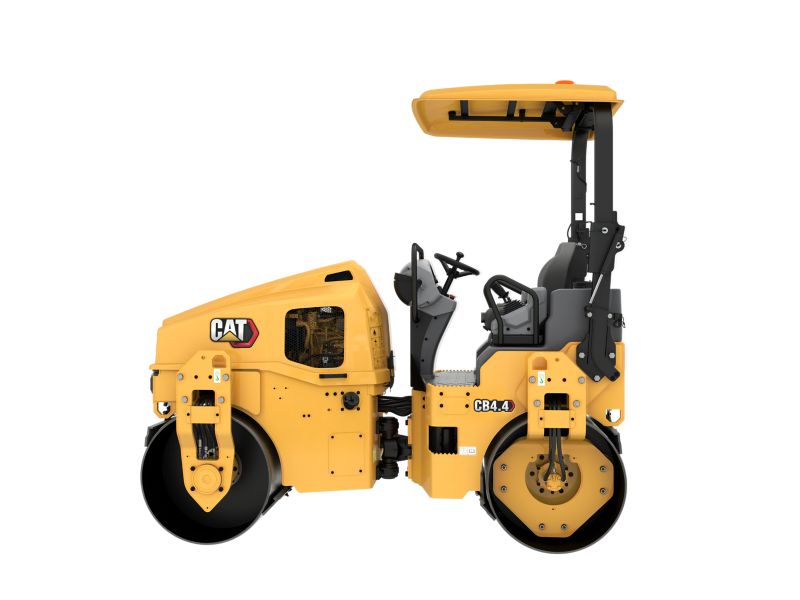

The CB4.4 is a 3-5 metric ton compactor with 1400 mm (55 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Standard Operating Weight with ROPS:
8362lb
Maximum Weight at Rear Drum:
4380lb
Maximum Weight at Front Drum:
3982lb
Maximum Operating Weight with ROPS:
9885lb
Static Linear Load:
72.2lb/in
Dimensions
Compaction Width:
55.1in
Overall Length:
112.3in
Overall Width:
59.1in
Drum Width:
55.1in
Drum Diameter:
31.5in
Wheel Base:
80.7in
Height - ROPS:
104.7in
Engine
Engine Power (1):
48.2hp
Engine Model:
C1.7T
Operating Specifications
Standard Compaction Width:
55.1in
Drum Offset:
2in
Curb Clearance:
19.6in
Ground Clearance:
11.2in
Travel Speed - Maximum:
8.1mile/h
Turning Radius - Inside Drum Edge:
113.2in
Turning Radius - Outside Drum Edge:
168.3in
Vibratory System
Frequency:
55/45 Hz (3300/2700 vpm)
Nominal Amplitude - High:
0.019in
Centrifugal Force - Maximum:
7828lb/ft
Service Refill Capacities
Fuel Tank Capacity:
21.43gal (US)
Water Spray Tank Capacity:
79gal (US)
Standard Equipment
operator environment
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
compacton system
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
powertrain
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
technology
- Telematics
electrical
- LED Working Lights
other
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
operator environment
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
compacton system
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 400 kg (880 lb)
- Ballast Kit - 542 kg (1194.91 lb)
powertrain
- Traction Control
technology
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
electrical
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
other
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
