At a glance data:
Standard Operating Weight with ROPS:
7889lb
Maximum Weight at Front Drum:
3918lb
Maximum Weight at Rear Drum:
3971lb
Maximum Operating Weight with ROPS:
3936lb
Overview

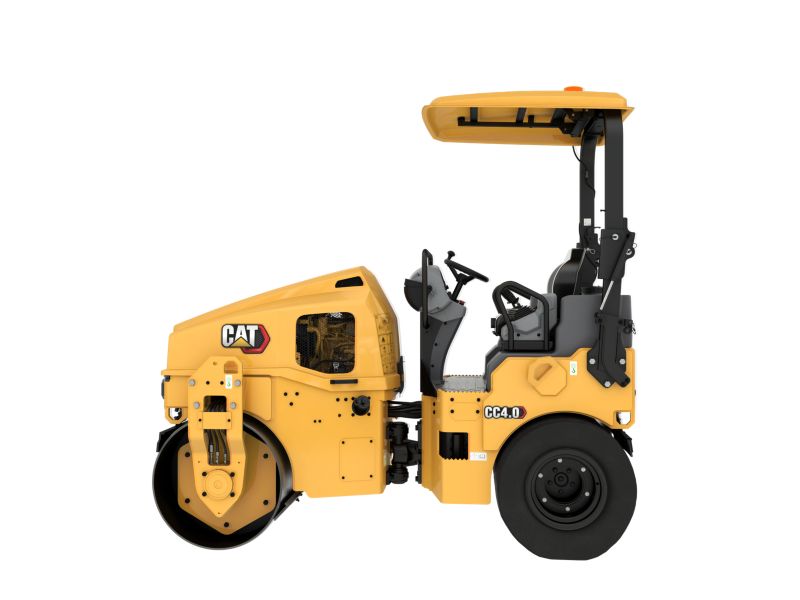

The CC4.0 is a 3-5 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Standard Operating Weight with ROPS:
7889lb
Maximum Weight at Front Drum:
3918lb
Maximum Weight at Rear Drum:
3971lb
Maximum Operating Weight with ROPS:
3936lb
Static Linear Load:
76.6lb/in
Dimensions
Compaction Width:
51.2in
Operating Specifications
Standard Compaction Width:
51.2in
Dimensions
Overall Length:
112.3in
Overall Width:
55.1in
Operating Specifications
Drum Offset:
2in
Dimensions
Drum Width:
51.2in
Operating Specifications
Curb Clearance:
19.6in
Dimensions
Drum Diameter:
31.5in
Operating Specifications
Ground Clearance:
11.2in
Travel Speed - Maximum:
7.5mile/h
Dimensions
Wheel Base:
80.7in
Operating Specifications
Turning Radius - Inside Drum Edge:
115.2in
Dimensions
Height - ROPS:
104.7in
Operating Specifications
Turning Radius - Outside Drum Edge:
166.4in
Static Linear Load:
59.8lb/in
Engine
Engine Power (1):
48.2hp
Engine Model:
C1.7T
Vibratory System
Frequency:
55/45 Hz (3300/2700 vpm)
Frequency:
3300VPM
Nominal Amplitude - High:
0.02in
Centrifugal Force - Maximum:
7524lb/ft
Service Refill Capacities
Fuel Tank Capacity:
21.43gal (US)
Water Spray Tank Capacity:
61gal (US)
Tire Spray Tank Capacity:
9.2gal (US)
Standard Equipment
operator environment
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
compacton system
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
powertrain
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
technology
- Telematics
electrical
- LED Working Lights
other
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offset Hitch
Optional Equipment
operator environment
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
compacton system
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
technology
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
electrical
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
other
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
