At a glance data:
Engine Model:
Cat® C13
Bore:
5.1in
Rated Payload:
38.9ton (US)
Overview

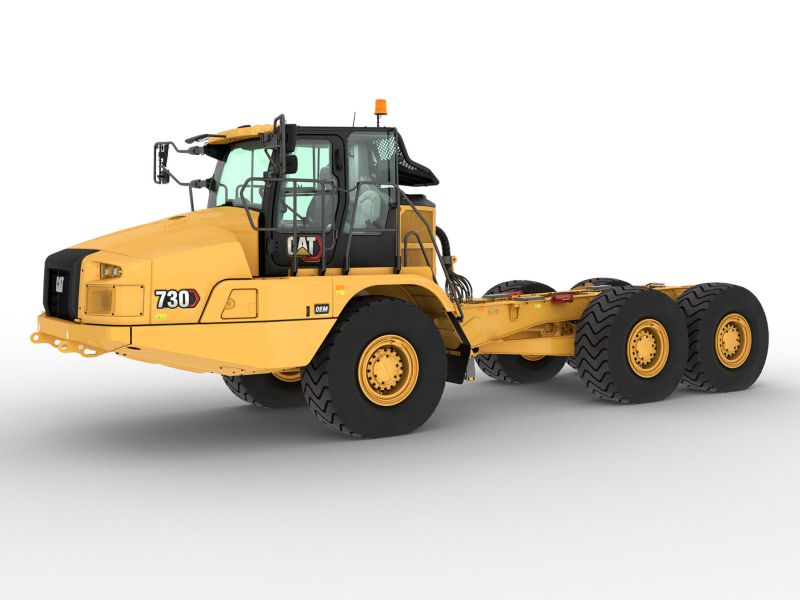

The OEM 730 Bare Chassis is a true “on-the-go” Automatic Traction Control (ATC). Strong, durable Cat C13 engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.
Category:
Articulated Truck Bare Chassis
Category:
Articulated Truck Bare Chassis
Brand:
Cat
Brand:
Cat
Engine
Engine Model:
Cat® C13
Gross Power - SAE J1995:2014:
375hp
Net Power - SAE J1349:2011:
367hp
Bore:
5.1in
Stroke:
6.2in
Displacement:
762.8in³
Net Power - ISO 14396:
370.0hp
Peak Engine Torque Speed:
1200r/min
Peak Engine Torque Gross (SAE J1995):
1579lb/ft
Peak Engine Torque Net (SAE J1349):
1554ft·lbf
No Engine De-rating Required Below:
12500ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV:
Cat® C13
Wheel Base Length
Standard Wheel Base:
156.7in
Long Wheel Base:
215.2in
Weights
Rated Payload:
38.9ton (US)
Transmission
Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
21mile/h
Forward - 5:
29mile/h
Forward - 6:
34mile/h
Reverse - 1:
6mile/h
Service Refill Capacities
Fuel Tank:
108.8gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
29.1gal (US)
Engine Crankcase:
10gal (US)
Transmission:
12.4gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
6.3gal (US)
DEF Tank:
5.3gal (US)
Sound Levels
Interior Cab:
72dB(A)
Standards
Brakes:
ISO 3450:2011
Cab - FOPS:
ISO 3449:2005 Level II
Cab - ROPS:
ISO 3471:2008
Steering:
ISO 5010:2019
Steering
Lock to Lock:
4.75 seconds @ 60 rpm
Turning Circle
Turning Dimensions - Inside Radius:
153in
Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Aisle Width:
210in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Steer Angle - Left/Right:
45°
Note:
Dimensions are for machines equipped with 23.5 R25 tires.
Standard Equipment
for more information on 730 bare chassis options, please contact caterpillar oem solutions at oem_solutions@cat.com.
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Windshield wiper and washer, two speed (rear)
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Mirrors: extensive arrangement for improved visibility
- Windshield wiper and washer, two speed, intermittent (front)
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS) ready
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Secondary steering – electro hydraulic
- Tilt and telescopic steering wheel
- Combined gear selection and hoist control lever
- Adjustable air vents
- Sun visor
- Retractable belt: Operator seat and second seat
- Touchscreen display incorporating the rearview camera video feed
- Heater and defroster with four-speed fan
- Air conditioning with R134A refrigerant
- Windows opening both sides, tinted
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt
cat technologies
- Cat Detect with Stability Assist
- Product Link
electrical and lighting
- Remote starting receptacle (cables not included)
- Horn
- Batteries (two) maintenance free
- Main disconnect switch
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Electrical system: 24-volt, 5A 24- to 12-volt converter
powertrain
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Cat C13 engine
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Auto shift six-speed forward and single speed reverse transmission
- Three axle, six-wheel drive
safety
- ROPS/FOPS cab
- Rearview camera
- Reverse alarm
guards
- Rear window
- Radiator
- Crankcase
- Axle
other standard equipment
- Sound suppression (only standard in Europe)
- S·O·S sampling valves
- Vandalism protection: lockable caps
- Tires, six 23.5R25
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
optional equipment
- Exhaust heated body
- Product Link Elite: PLE641 (cellular). Product Link is optional.
- Engine block heater
- Cold weather start attachment
- Cold weather coolant –51° C (–60° F)
- Bare chassis (no body) standard wheel base
- Four-point seat belt
- Infrared glass – high ambient cab
- Flashing LED beacon
- Heated/cooled seat
- Window blinds
- Sound suppression (only standard in Europe)
- Wheel chocks
- Machine Security System (MSS)
- Roof mounted High Intensity Discharge (HID) work lights
- Bluetooth radio stereo system
- Heated rearview motorized mirrors
- Cat Production Measurement payload monitoring system
- Fast fuel fill
- Ether start
- Auto lube installation for automatic greasing of bearings
- Fuel additive – anti-waxing
