At a glance data:
Engine Power @ 1,600 rpm - ISO 14396:2002:
321hp
Engine Model:
Cat C9.3B
Gross Power @ 1,600 rpm - SAE J1995:2014:
325hp
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011:
292hp
Overview

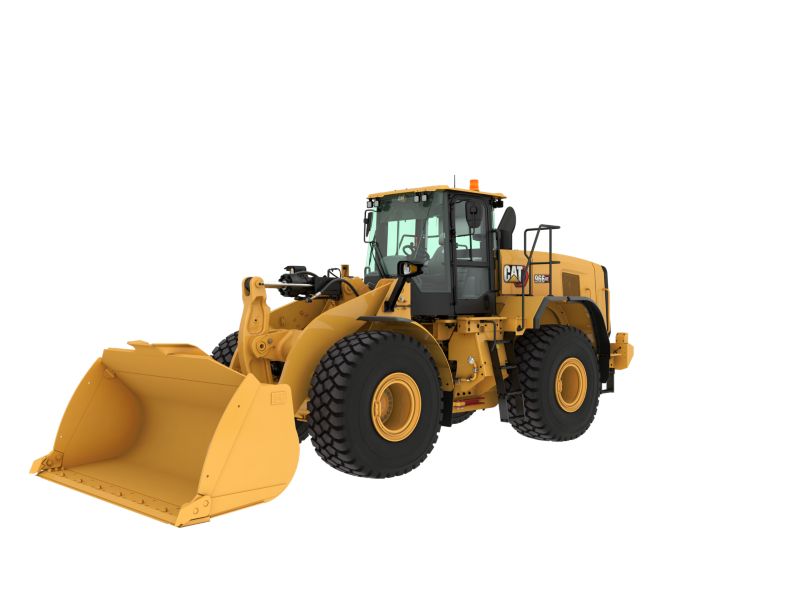

The new Cat® 966 GC Wheel Loader is easy to own and operate. It offers low fuel consumption with an on-demand fan, load sensing hydraulics, intuitive controls, and performance series buckets. This machine is built to be just the right machine for a broad range of applications. Great machine performance combined with the low owning and operating costs makes the 966 GC the right choice for your business.
Category:
Medium Wheel Loaders
Category:
Medium Wheel Loaders
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Power @ 1,600 rpm - ISO 14396:2002:
321hp
Engine Model:
Cat C9.3B
Gross Power @ 1,600 rpm - SAE J1995:2014:
325hp
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011:
292hp
Net Power - ISO 9249:
292hp
Engine Torque @ 1,200 rpm - ISO 14396:2002:
1314ft·lbf
Gross Torque @ 1,200 rpm – SAE J1995:2014:
1327ft·lbf
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011:
1234ft·lbf
Bore - ISO 9249:
4.53in
Stroke:
5.87in
Displacement:
568in³
Note (1):
Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2):
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3):
Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels
Weights
Operating Weight*:
48018lb
Note (1):
* For 4.0 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2):
* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Operating Specifications
Static Tipping Load - Full 37° Turn - With Tire Deflection:
30072lb
Static Tipping Load - Full 37° Turn - No Tire Deflection:
32233lb
Breakout Force:
36974lbf
Note (1):
* For 4.0 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2):
* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Buckets
Bucket Capacities:
3.2 - 7.1 m³ (4.25 - 9.25 yd³)
Sound
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008):
75dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008):
110dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013):
78 dB(A)*
Note (1):
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**:
73dB(A)
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**:
108 dB(A)***
Note (2):
** For machines in European Union countries and in countries that adopt the “EU Directives”.
Note (3):
*** European Union Directive “2000/14/EC” as amended by “2005/88/EC”.
Transmission
Forward - 1:
4mile/h
Reverse - 1:
4.3mile/h
Forward - 2:
7.5mile/h
Reverse - 2:
8.2mile/h
Forward - 3:
13mile/h
Reverse - 3:
14.3mile/h
Forward - 4:
21.6mile/h
Reverse - 4:
22.9mile/h
Note:
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32 in) roll radius.
Service Refill Capacities
Fuel Tank:
84.5gal (US)
DEF Tank:
6.9gal (US)
Cooling System:
14gal (US)
Crankcase:
6.1gal (US)
Transmission:
14.5gal (US)
Differential - Final Drives - Front:
15.1gal (US)
Differential - Final Drives - Rear:
15.1gal (US)
Hydraulic Tank:
26.7gal (US)
Hydraulic System
Implement Pump Type:
Variable Displacement Piston, Load Sensing
Implement System - Maximum Flow @ 2,275 rpm:
86gal/min
Implement System - Maximum Operating Pressure:
4047psi
Implement System - Maximum Flow 3rd Function:
63gal/min
Implement System - Maximum Operating Pressure 3rd Function:
3304psi
Hydraulic Cycle Time - Raise from Carry Position:
5.7s
Loader Hydraulic System
Hydraulic Cycle Time - Dump, at Maximum Raise:
1.8s
Hydraulic System
Hydraulic Cycle Time - Lower, Empty, Float Down:
2.6s
Hydraulic Cycle Time - Total Cycle Time:
10.1s
Cab
ROPS/FOPS:
ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Brakes
Brakes:
Brakes meet ISO 3450:2011 standards
Dimensions
B-Pin Height:
13.11ft
Centerline of Rear Axle to Edge of Counterweight:
8.1ft
Wheel Base:
11.65ft
Centerline of Rear Axle to Hitch:
5.82ft
Rack Back - Maximum Lift:
62°
Rack Back - Carry:
50°
Rack Back - Ground:
42°
Lift Arm Clearance:
12.16ft
Height - Top of Hood:
9.2ft
Height - Top of Exhaust Pipe:
11.61ft
Height - Top of ROPS:
11.75ft
Ground Clearance:
1.49ft
Sustainability
Recyclability:
97%
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
- Bucket/work tool function lockout
- Switch, transmission neutralizer lockout
- Cab, pressurized and sound suppressed
- Camera, rearview
- Coat hook
- Computerized monitoring system
- Cup holders and personal tray on right console and behind seat
- Horn
- Mirrors, rearview external with integrated spot mirror
- Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
- 12V power port (10A)
- Radio ready
- ROPS/FOPS structure
- Seat, Cat Comfort (cloth), mechanical suspension
- Steering column, adjustable angle
- Window, sliding (left and right sides)
- Wipers/washers (front and rear)
power train
- Axels, Open/Open differentials
- Brakes, full hydraulic enclosed wet-disc
- Cat C9.3B engine
- EIMS (Engine Idle Management System)
- AIS (Auto Idle Shutdown)
- Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
- Fan, reversing automatic and manual control
- Filter, fuel primary/secondary/tertiary
- Filters, engine air, primary/secondary
- Fuel priming pump (electric)
- Fuel/water separator
- Radiator, unit core (9.5 fpi) with ATAAC
- Torque converter
- Transmission, powershift (4F/4R), automatic (2-4) with kick-down function, overspeed protection
linkage
- Lift and bucket return-to-dig kickouts (electro-magnetic), mechanical adjustment
- Z-bar, cast tilt lever
hydraulics
- Dedicated brake and fan pump
- Dedicated load sensing steering pump
- Load sensing implement system pilot operated
- S O S ℠ oil sampling valves
electrical
- Alarm, back-up variable/main disconnect switch
- Alternator (145-amp, brush type)
- Batteries, maintenance free (2 x 1,125 CCA)
- Ignition key; start/stop
- Lighting system: 4 halogen work lights, cab mounted
- Roading lights with high/low beam and F and R turn signals
- Starter, electric (heavy duty)
- Starting and charging system, 24V
additional equipment
- Cold weather starting basic (ether starting aid)
- Counterweight, 605 kg (1,334 lb)
- Fenders (front) steel
- Grill, airborne debris
- Hitch, drawbar with pin
- Hood, metallic on steel structure
- Doors, service access (locking)
- L3 radial or bias ply tires
- Precleaner, strata tubes
- Product Link™ ready
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Cat® Payload (kit)
- Radio
- Seat, air suspended
power train
- Axles, limited slip differential(s)
- Axles, oil cooler
- Fan, reversing automatic and manual control
linkage
- Fusion™ quick coupler control with dual kick outs
hydraulics
- Quick coupler control
- Ride control
- 3rd function with additional dedicated single axis lever
electrical
- Lighting system: 8 halogen work lights, cab mounted
- Lighting system: 4 LED work lights, cab mounted
- Lighting system: 8 LED work lights, cab mounted
- Lights: warning beacon
additional equipment
- Autolube system
- Camera, front view (kit)**
- Cold weather starting full (HD batteries 2 x 1,400 CCA, ether system, jacket water heater, cold weather fluids)
- Fender rear extensions or roading
- L5 traction tires
- Power train guard
- Precleaner, strata tubes with screen
- Precleaner, strata tubes with screen
- Reverse Stobe (kit)***
- Roading Certification****
- Secondary steering system, electrical*
- Toolbox
- Window cleaning (kit)
- Windshield guard
optional equipment - note
- * Standard where mandated
- ** Refer to M0106413 publication for usage reqiurements.
- *** Not compatible with roading arrangements.
- **** Offering depends on region.
