At a glance data:
Overview

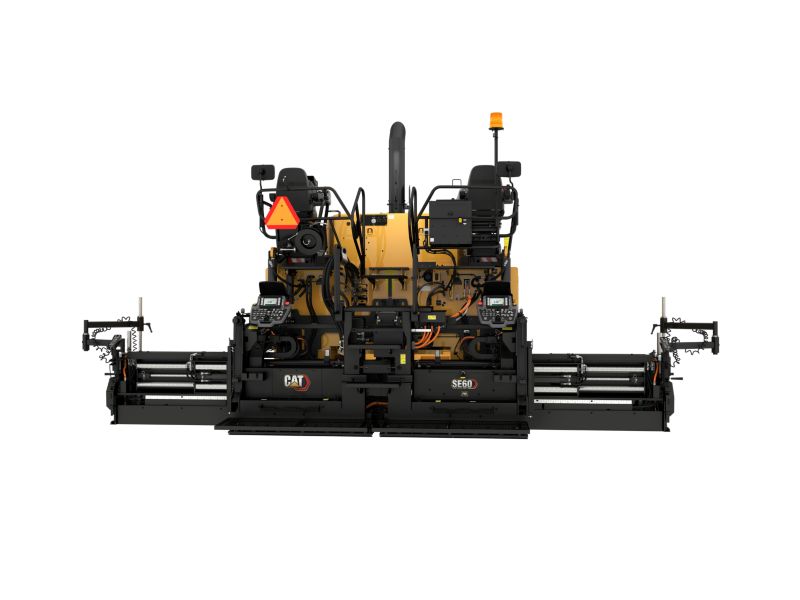

The Cat® SE60 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.
Category:
Screeds
Category:
Screeds
Brand:
Cat
Brand:
Cat
Weights
Standard Weight:
7800lb
Operating Specifications
Standard Paving Range:
3.05 - 5.94 m (10' - 19' 6")
Maximum Paving Width:
25.5ft
Maximum Paving Depth:
10in
Heating Time - Maximum Width:
25 minutes
Heating Time - Standard Width:
15 minutes
Dimensions
Minimum Width - Endgates Attached:
132in
Transport Length - Tractor and Screed:
21.75ft
Operating Specifications
Crown Range:
-2.5% to 5%
Vibratory Speed Range:
0 to 3000 vpm
Extender Height Range:
-41 mm to +6.5 mm
Extender Slope Range:
0% to 9%
Dimensions
Screed Plates Width, Front to Back, Main Screed:
24in
Screed Plates Width, Front to Back, Extenders:
9in
Length - Front to Back, Endgates Attached:
86in
Length - Front to Back, Endgates Removed:
59in
Standard Equipment
operating environment
- Level holder
- Lockable storage
- Shovel holder
power controls
- Crown
- Slope
- Extender height
service and repair
- Service repair kits
safety
- Horn
material delivery
- Thickness screws _ clockwise or counterclockwise
- End gate_manual
Optional Equipment
operating environment
- Pendent control
- Visor _ LCD display
technology
- Cat Grade Control
safety
- Lights_roading
material delivery
- Berm attachments
- Cutoff shoe
- Drop arm stabilizer
- End gate_heated
- End gate shoe_safety edge
- ExtensionsExtension _ 100 mm (4") high angle of attack
- Extension _ 305 mm (12")
- Extension _ 457 mm (18")
- Extension _ 610 mm (24")
- Screed plate _ dove tail
- Tapered notch extension with 457 mm (18")
- Vibratory sled _ utilized with tapered notch
