At a glance data:
Overview

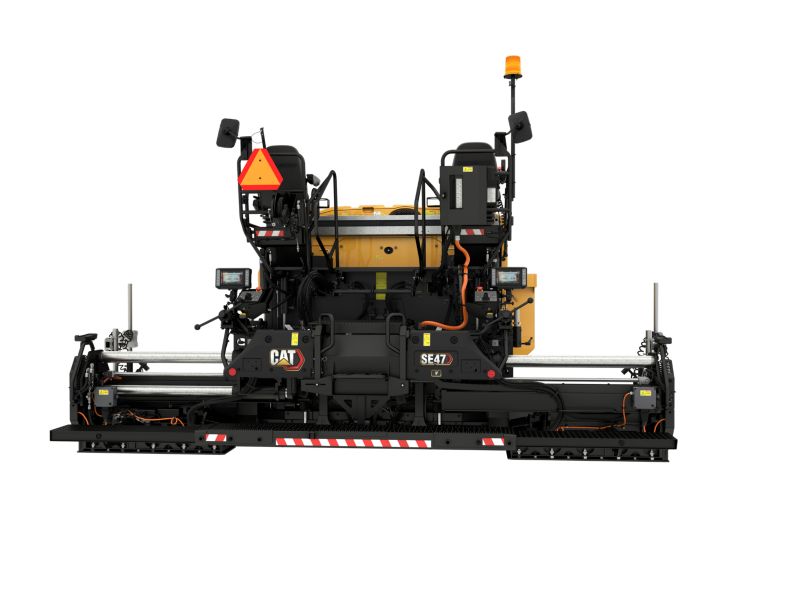

The Cat® SE47 V screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for urban streets, parking lots, rural roads, and many other mid-sized paving applications.
Category:
Screeds
Category:
Screeds
Brand:
Cat
Brand:
Cat
Weights
Standard Weight:
5850lb
Operating Specifications
Standard Paving Range:
2.44 - 4.7 m (8' - 15' 6")
Maximum Paving Width:
20ft
Maximum Paving Depth:
10in
Heating Time - Maximum Width:
25 minutes
Heating Time - Standard Width:
15 minutes
Dimensions
Minimum Width - Endgates Attached:
102in
Transport Length - Tractor and Screed:
18.1ft
Operating Specifications
Crown Range:
+6% to -2%
Vibratory Speed Range:
0 to 3000 vpm
Extender Height Range:
+30 mm to -20 mm
Extender Slope Range:
+10% to -3%
Dimensions
Screed Plates Width, Front to Back, Main Screed:
12.8in
Screed Plates Width, Front to Back, Extenders:
12.8in
Length - Front to Back, Endgates Attached:
84in
Length - Front to Back, Endgates Removed:
60in
Height:
56in
Standard Equipment
power controls
- Crown
- Slope
- Extender height
service and repair
- Service repair kits
safety
- Horn
material delivery
- End gate_manual
- Thickness screws _ clockwise or counterclockwise
operating environment
- Pendent control
- Umbrella
Optional Equipment
technology
- Cat Grade Control
- Basic Grade Control
safety
- Lights, roading
material delivery
- Cutoff shoe
- Drop arm stabilizer
- End gate_power
- End gate_heated
- Extension_343 mm (13.5")
- Safety edge shoe
- Straight shoe
- Wide shoe
