At a glance data:
Gross Power:
74.6hp
Engine Power - ISO 14396:
74.4hp
Net Power - ISO 9249:
68.3hp
Net Power - SAE J1349:2011:
67.5hp
Overview

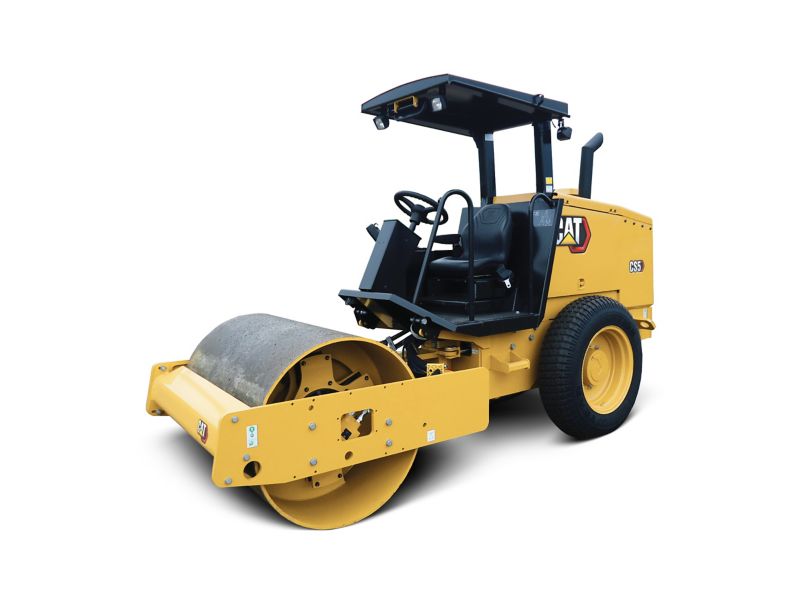

The Cat® CS5 Vibratory Soil Compactors are ideally suited for granular soil applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.
Category:
Vibratory Soil Compactors
Category:
Vibratory Soil Compactors
Brand:
Cat
Brand:
Cat
Engine
Gross Power:
74.6hp
Engine Power - ISO 14396:
74.4hp
Net Power - ISO 9249:
68.3hp
Net Power - SAE J1349:2011:
67.5hp
Note (1):
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model:
Cat® C3.4B
Emissions:
U.S. EPA Tier 4 Final
Stroke:
4.3in
Bore:
3.9in
Weights
Operating Weight - With ROPS/FOPS Canopy:
9800lb
Weight - Drum with ROPS/FOPS Canopy:
4497lb
Note (1):
Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.
Vibratory System
Nominal Amplitude - High:
0.051in
Centrifugal Force - Maximum:
17535lb
Static Linear Load - With ROPS/FOPS Canopy:
90.2lb/in
Dimensions
Compaction Width:
50in
Overall Length:
13.6ft
Overall Width:
4.6ft
Maximum Height:
8.3ft
Drum Diameter:
40in
Wheel Base:
7.3ft
Operating Specifications
Ground Clearance:
13.7in
Curb Clearance:
13.5in
Turning Radius - Inside Drum Edge:
8.6ft
Travel Speed - Maximum:
5.5mile/h
Service Refill Capacities
Fuel Tank Capacity:
29.9gal (US)
Cooling System:
4.8gal (US)
Engine Oil - With Filter:
2.4gal (US)
Eccentric Weight Housings (combined):
14gal (US)
Axle and Final Drives:
1.9gal (US)
Hydraulic Tank:
10.6gal (US)
Sustainability
Recyclability:
97%
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat
- Adjustable Seat with Integrated Console
- LCD Display with Lockable Vandalism Guard
- Rear Vision Camera System with Color Touchscreen Display
- High Visibility 76 mm (3 in) Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
vibratory system
- Smooth Drum
- Single Amplitude, Single Frequency
- Single Adjustable Steel Scraper
powertrain
- Cat® C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator / Hydraulic Oil Cooler
- Dual Braking System
- Single-Speed Hydrostatic Transmission
- Limited Slip Differential
electrical
- 12 volt Electrical System
- 120 ampere Alternator
- 600 Cold-cranking Amps Battery Capacity
other
- Lockable Engine Enclosure, Hydraulic and Fuel Tanks
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
- Halogen Working Lights (4)
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
other
- Amber Rotating Beacon
