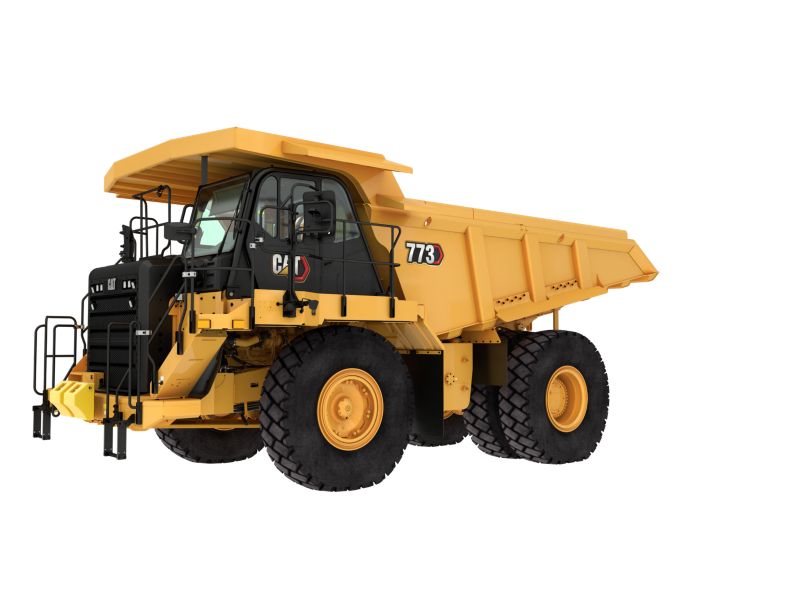

773 Off-Highway Truck

At a glance data:

Engine Model:
Cat® C27
Rated Engine Speed:
2000r/min
Nominal Payload Class (100%):
61.7ton (US)
Top Speed - Loaded:
42mile/h
773 Off-Highway Truck

Overview

Caterpillar is pleased to introduce to you the 773 Off-Highway Truck. You may be asking how, after 40 years of building trucks, Caterpillar has improved this product’s ability to support your business.<br>The 773 has been designed and manufactured using the latest quality control technologies – virtual and hands on. This product has over 30,000 hours of proven performance in the hands of customers prior to production, all of which ensures the truck delivered to your yard is ready to work, reliably and dependably.<br>In addition to quality, Cat 773 trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With Cat 773 trucks in your haul fleet, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 773 trucks can and will make a positive difference to both your business and people – all day, every day.

Category:
Off-Highway Trucks

Brand:
Caterpillar

Engine

Engine Model:
Cat® C27
Rated Engine Speed:
2000r/min
Gross Power - SAE J1995:2014:
825hp
Net Power - SAE J1349:2011:
727hp
Net Power - 80/1269/EEC:
727hp
Net Power - ISO 9249:
727hp
Bore:
5.4in
Stroke:
6in
Displacement:
1648in³
Note (1):
Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard.
Note (2):
Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Net Torque:
2874ft-lb
Peak Torque - Speed:
1300r/min
Note (3):
No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent.
Engine Power - ISO 14396:
813hp

Weights - Approximate

Maximum Gross Vehicle Weight:
226503lb

Operating Specifications

Nominal Payload Class (100%):
61.7ton (US)
Top Speed - Loaded:
42mile/h
Note (2):
* Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Body Capacity - SAE 2:1:
46.75yd³
Target Payload (100%):
61.7ton (US)
Note (1):
Capacity with Dual Slope body – no liner.
Maximum Allowable Payload (120%)*:
74ton (US)
Maximum Working Payload (110%):
67.8ton (US)

Transmission

Forward - 1:
6.7mile/h
Forward - 2:
9.4mile/h
Forward - 3:
12.7mile/h
Forward - 4:
17mile/h
Forward - 5:
23mile/h
Forward - 6:
31.1mile/h
Forward - 7:
42mile/h
Reverse:
8.8mile/h
Note:
Maximum travel speeds with standard 24.00R35 (E4) tires.

Final Drives

Differential Ratio:
3.64:1
Planetary Ratio:
4.80:1
Total Reduction Ratio:
17.49:1

Brakes

Brake Surface - Front:
257in²
Brake Surface - Rear:
9497in²
Brake Standards:
ISO 3450:2011

Body Hoists

Pump Flow - High Idle:
118gal/min
Relief Valve Setting - Raise:
2502psi
Relief Valve Setting - Lower:
500psi
Body Raise Time - High Idle:
9.5s
Body Lower Time - Float:
13s
Body Power Down - High Idle:
13s

Capacity - Dual Slope - 100% Fill Factor

Struck:
35.13yd³
Note (1):
Contact your local Cat dealer for body recommendation.
Heaped (SAE 2:1)*:
46.76yd³
Note (2):
* ISO 6483:1980.

Capacity - Flat Floor - 100% Fill Factor

Struck:
34.33yd³
Heaped (SAE 2:1)*:
46.41yd³
Note (2):
* ISO 6483:1980.
Note (1):
Contact your local Cat dealer for body recommendation.

Weight Distributions - Approximate

Front Axle - Empty:
53%
Front Axle - Loaded:
35%
Rear Axle - Empty:
47%
Rear Axle - Loaded:
65%

Suspension

Rear axle - Oscillation:
8.1°
Empty Loaded Cylinder Stroke Front:
9.2in
Empty Loaded Cylinder Stroke Rear:
5.8in

Service Refill Capacities

Fuel Tank:
210gal (US)
Cooling System:
45gal (US)
Differential - Final Drives:
38gal (US)
Steering Tank:
9.5gal (US)
Steering System - Including Tank:
14gal (US)
Brake/Hoist Hydraulic Tank:
46.5gal (US)
Crankcase:
24gal (US)
Brake Hoist System:
85gal (US)
Torque Converter - Transmission System - LRC:
16gal (US)

Tires

Note (1):
Productive capabilities of the 773G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2):
Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.
Standard Tire:
24.00R35 (E4)

ROPS

FOPS Standards:
Falling Object Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
ROPS Standards:
Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.

Sound

Sound Standards (2):
The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 86 dB(A).
Sound Standards (3):
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Sound Standards (1):
The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.

Steering

Turning Diameter - Front:
77.1ft
Steering Standards:
ISO 5010:2007
Steer Angle:
31°
Turning Circle - Clearance Diameter:
85.6ft

Standard Equipment

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

power train

  • Cat C27 Tier 4/Stage V compliant diesel engine:
    – Air cleaner with precleaner (2)
    – Air-To-Air Aftercooler (ATAAC)
    – Electric start
    – Engine idle shutdown
    – Ether starting aid
    – Exhaust muffler
    – NGMR radiator
    For non-regulated regions only:
    – Direct drive fan
    – MEUI-A fuel system
  • Braking system:
    – Extended Life Brakes
    – Automatic Retarder Control (ARC)
    – Manual retarder (utilizes rear oil-cooled, multiple disc brakes)
    – Brake release motor (towing)
    – Dry disc brakes (front)
    – Front brake disconnect switch (front)
    – Oil-cooled multiple disc brakes (rear)
    – Brake wear indicator (rear)
    – Parking brake
    – Secondary brake
    – Service brake
  • Transmission:
    – 7-speed automatic powershift with:
    • Electronic Clutch Pressure Control (ECPC)
    • Advanced Productivity Electronic Control Strategy (APECS)

    – Automatic neutral idle
    – Autostall
    – Second gear start

suspension systems

  • Suspension, front and rear (EU compliant)

electrical

  • Alarm backup
  • Alternator, 120 Amp
  • Autolube power supply ready
  • Batteries, maintenance-free, 12V (2), 1,400 CCA combined
  • Electrical system, 25 Amp, 24V to 12V converter
  • Lighting system:
    – Backup light (halogen)
    – Directional signals/hazard warning (front and rear LED)
    – Engine compartment light
    – Headlights, (halogen) with dimmer
    – Operator access courtesy lights
    – Side profile lights
    – Stop/tail lights (LED)
  • Service center containing:
    – Battery jump start
    – Breakers with spare fuses
    – Lockout switch
    – Ports, ET and VIMS
    – Service lockout switch (power without engine start)

technology products

  • Economy Modes, standard and adaptive
  • Product Link, cellular or satellite
  • Traction Control System (TCS)
  • Truck Production Management System
  • Vital Information Management System (VIMS)

operator environment

  • Advisor display:
    – Air cleaner service indicator
    – Fluid level monitoring
    – Fuel level monitoring
    – Display languages (market-based)
  • Air conditioning/heat
  • Automatic temperature control
  • Ashtray and cigarette lighter
  • Coat hook
  • Cup holders (4)
  • Diagnostic connection port, 24V
  • Entertainment radio ready:
    – 5 amp converter
    – Speakers
    – Antenna
    – Wiring harness
  • Foot rest
  • Gauges/indicators:
    – Brake oil temperature gauge
    – Coolant temperature gauge
    – Engine overspeed indicator
    – Fuel level
    – Hour meter
    – Speedometer with odometer
    – Tachometer
    – Transmission gear indicator
  • Hoist lever
  • Horn
  • Light – courtesy
  • Light – dome
  • Mirrors, non-heated
  • Power port, 24V and 12V (2)
  • Rollover Protection (ROPS)/Falling Object Protection (FOPS)
  • Seat, Cat Comfort Series III:
    – Full air suspension
    – Retractable 3-point seat belt with shoulder harness
  • Seat, training with lap belt
  • Steering wheel, padded, tilt and telescopic
  • Storage compartment
  • Sun visor
  • Throttle lock
  • Window, hinged, right side (emergency exit)
  • Window, powered, left side
  • Windshield wiper intermittent and washer

guards

  • Driveline
  • Engine crankcase
  • Fan

fluids

  • Antifreeze
  • Extended life coolant to –34° C (–30° F)
  • Grouped ground-level filters

other standard equipment

  • Body down indicator
  • Body safety pin (secures body in up position)
  • Center-mounted rims
  • Fuel tank, 795 L (210 gal)
  • Ground level battery disconnect
  • Ground level engine shutdown
  • Ground level grease fittings
  • Operator Maintenance Manual (OMM)
  • Rims 17 × 35
  • Rock ejectors
  • Secondary steering (electric)
  • Tie down eyes
  • Tow hooks (front)/tow pin (rear)
  • Vandalism protection locks

Optional Equipment

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

optional equipment

  • Body heat
  • Body liner
  • Body sideboards
  • Cab precleaner
  • Cat Engine Brake
  • Clustered grease fittings
  • Cold weather packages
  • Fluid fill service center
  • HID lights
  • Mirrors, convex
  • Mirrors, heated
  • Spare rim
  • Visibility package (meets ISO 5006 requirements)
  • Wheel chocks
  • Work Area Vision System (WAVS)
