At a glance data:
Engine Power (ISO 14396):
196hp
Bore:
4.1in
Derating Altitude:
9842ft
Displacement:
427.8in³
Overview

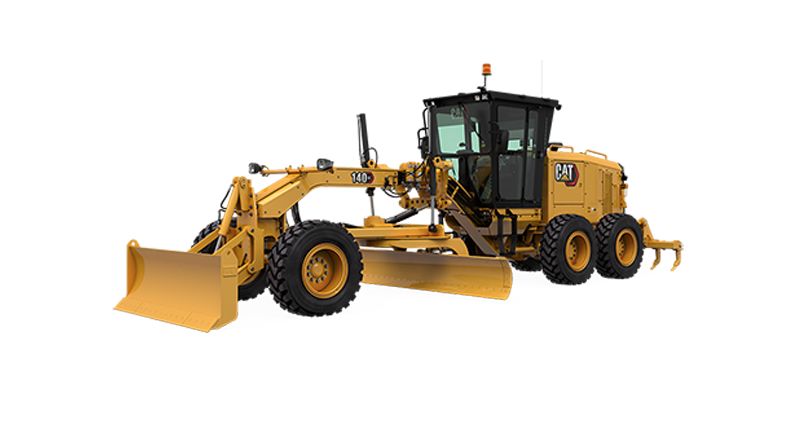

The Cat® 140 GC Motor Grader is easy to own and operate. A demand fan and standard Eco mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent movement using lever controls from the comfort of the all new cab. Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.
Category:
Motor Graders
Category:
Motor Graders
Brand:
Cat
Brand:
Cat
Engine
Engine Power (ISO 14396):
196hp
Bore:
4.1in
Derating Altitude:
9842ft
Displacement:
427.8in³
Emissions:
U.S. EPA Tier 4 Final/EU Stage V
Engine Model:
Cat 7.1
Engine RPM:
2,200
Standard Capability:
109°F
High - Ambient Capability:
122°F
Maximum Torque - ISO 9249:
616lb/ft
Stroke:
5.3in
Torque Rise - ISO 9294:
40%
Number of Cylinders:
6
Note (1):
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2):
Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (3):
Power as declared per ISO 14396
Engine Power AWD (ISO 14396):
196hp
Weights
Operating Weight - Typically Equipped:
38725lb
Moldboard
Blade Width:
12ft
Weights
Note:
*Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, rear ripper, tires on multi-piece rims (*17.5-25 Bias/**17.5R-25), and other equipment.
Weight
All-Wheel Drive Weight (AWD) (Stage V)*:
40543lb
All-wheel Drive Weight (AWD) (Tier 4 Final)**:
42119lb
Weight (Tier 4 Final)**:
40488lb
Dimensions
Width All Wheel Drive (AWD):
99.3in
Length of Machine*:
406.7in
Maximum Height:
132.4in
Width:
95.6in
Note:
*Typically equipped with push block and ripper.
Moldboard
Arc Radius:
16.3in
Blade Height:
24in
Cutting Edge Width:
6in
End Bit:
6in
Throat Clearance:
4.4in
Blade Range
Circle Center Shift Left:
29.6in
Circle Center Shift Right:
28.7in
Maximum Depth of Cut:
28.1in
Maximum Lift Above Ground:
18.7in
Maximum Shoulder Reach Left:
74.3in
Maximum Shoulder Reach Right:
71.3in
Moldboard Side Shift Left:
25.6in
Moldboard Side Shift Right:
20.7in
Blade Tip Range Backward:
5
Blade Tip Range Forward:
40
Service Refill Capacities
Fuel Tank:
78gal (US)
Circle Drive with Slip Clutch:
2gal (US)
Circle Drive without Slip Clutch:
0.5gal (US)
Cooling System:
40l
Engine Crankcase:
5.5gal (US)
Diesel Exhaust Fluid Tank (Tier 4 Only):
4.2gal (US)
Hydraulic System:
11.9gal (US)
Transmission:
4.8gal (US)
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Standard Seat
- Steering Wheel/Lever Controls
- Base Cab
- Information Display Screen
- Halogen Lighting
- Entertainment Radio Ready
- Product Link
- Cell Phone Holder
powertrain
- Cat C7.1
- Eco mode
- On-Demand Fan
- No-Spin Differential
safety
- Parking Brake
- Signaling/Warning Horn
- Rearview Mirror
- Hydraulic Brakes
- Sideview Mirrors
- Walkways and Grab Rails
- Hydraulic System with Integrated Work Port Pressure Relief
- Hydraulic System with Integrated Dead Engine Implement Lower
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Mechanical Suspension Seat
- Air Suspension Seat
- ROPS/FOPS
- Heating/Cooling Cab System
- Rear Wiper
- Canopy
- Cab Plus
- Rear Window Screen
- Front Wipers
- Digital Blade Slope Meter
powertrain
- Reversing Fan
- All-Wheel Drive (AWD)
drawbar circle moldboard
- Circle Drive Slip Clutch
- Circle Saver
safety
- Rearview Camera
- Secondary Steering System
- Front View Camera
- Four-point Safety Harness Seat Belt
versatility
- Scarifier
- Counterweight
- Push Block
- Front Lift Group From Factory
- Snow Wing
- Front Blade
- L3 Tires
- Sy-Klone Pre-Cleaner
