At a glance data:
Engine Model:
Cat® C9.3
Emissions:
U.S. EPA Tier 4 Final/EU Stage V
Bore:
4.5in
Displacement:
567.5in³
Overview

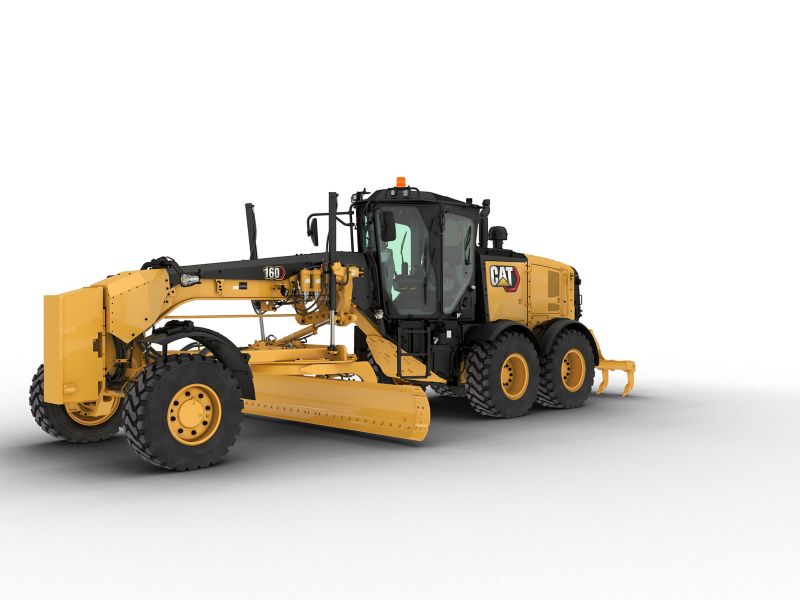

The Cat® 160/160 AWD Motor Grader delivers power, efficiency, and operating finesse to the job. Joystick controls provide ergonomic comfort for the operator. This high-performance machine minimizes emissions with the latest control technologies, without loss of productivity.
Category:
Motor Graders
Category:
Motor Graders
Brand:
Cat
Brand:
Cat
Engine
Engine Model:
Cat® C9.3
Emissions:
U.S. EPA Tier 4 Final/EU Stage V
Bore:
4.5in
Displacement:
567.5in³
Stroke:
5.9in
Number of Cylinders:
6
Torque Rise:
39%
Maximum Torque - VHP Plus:
1000lb/ft
Derating Altitude:
10000ft
Weights
Operating Weight - Typically Equipped:
45547lb
Moldboard
Blade Width:
14ft
Cutting Edge Thickness:
0.6in
Cutting Edge Width:
6in
End Bit - Thickness:
0.6in
End Bit - Width:
6in
Moldboard - Blade Width:
14ft
Moldboard - Height:
24in
Moldboard - Thickness:
0.87in
Throat Clearance:
6.5in
Blade Down Pressure - Base GVW:
17004lb
Blade Down Pressure - Maximum GVW:
29308lb
Blade Pull - Base GVW:
25931lb
Blade Pull - Maximum GVW:
34262lb
Arc Radius:
16.3in
Dimensions
Height - Top of Cab:
130in
Length - Counterweight to Ripper:
399in
Ground Clearance - Rear Axle:
13.3in
Blade Range
Maximum Lift Above Ground:
17.8in
Maximum Depth of Cut:
29.5in
Maximum Blade Position Angle:
90
Maximum Shoulder Reach Outside of Tires - Left:
82.3in
Maximum Shoulder Reach Outside of Tires - Right:
89.7in
Moldboard Sideshift - Left:
20.1in
Moldboard Sideshift - Right:
26in
Blade Tip Range - Backward:
5
Blade Tip Range - Forward:
40
Circle Centershift - Left:
27.4in
Circle Centershift - Right:
28.7in
Frame
Front Frame Structure - Height:
12.6in
Front Frame Structure - Width:
12in
Front Axle - Height to Center:
23.5in
Front Axle - Total Oscillation per Side:
32
Front Axle - Wheel Lean - Left/Right:
18
Front-Top/Bottom Plate - Thickness:
0.87in
Front-Top/Bottom Plate - Width:
12in
Drawbar - Height:
6in
Drawbar - Thickness:
0.5in
Drawbar - Width:
3in
Circle - Blade Beam Thickness:
1.6in
Circle - Diameter:
61.1in
Circle - Height:
6.3in
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).
Power Train
Transmission:
APECS, Direct Drive, Powershift
Forward/Reverse Gears:
8 Forward/6 Reverse
Brakes - Service - Surface Area:
3565in²
Brakes - Service:
Multiple Oil Disc
Brakes - Parking:
Multiple Oil Disc
Brakes - Secondary:
Dual Circuit Control
Service Refill
Fuel Capacity:
104gal (US)
Diesel Exhaust Fluid:
5.8gal (US)
Circle Drive Housing:
1.8gal (US)
Cooling System:
15gal (US)
Hydraulic System - Total:
26.4gal (US)
Hydraulic System - Tank:
16.9gal (US)
Transmission - Differential - Final Drives:
18.5gal (US)
Tandem Housing - Each:
22.9gal (US)
Engine Oil:
7.9gal (US)
Front Wheel Spindle Bearing Housing:
0.13gal (US)
Ripper
Ripping Depth - Maximum:
16.8in
Ripper Shank Holders:
5
Ripper Shank Holder Spacing:
21in
Machine Length Increase, Beam Raised:
40.6in
Scarifier
Mid, V-Type - Working Width:
46.6in
Mid, V-Type - Scarifier Shank Holders:
11
Mid, V-Type - Scarifier Shank Holder Spacing:
4.6in
Mid, V-Type - Scarifying Depth, Maximum:
11.5in
Rear - Scarifier Shank Holders:
9
Rear - Scarifier Shank Holder Spacing:
10.5in
Rear - Scarifying Depth, Maximum:
16.8in
Rear - Working Width:
84in
Ripper
Penetration Force:
20812lb
Pry-Out Force:
28493lb
Scarifier
Front, V-Type - Working Width:
47.4in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders:
5 or 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing:
4.6in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum:
18.4in
Front, V-Type, 5 or 11 Tooth - Working Width:
40.6in
Operating Specifications
Top Speed - Forward:
29.5mile/h
Top Speed - Reverse:
23.3mile/h
Articulation Angle - Left/Right:
20°
Steering Range - Left/Right:
50°
Turning Radius - Outside Front Tires:
25.59ft
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
powertrain
- Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger
- Air-to-air after cooler (ATAAC)
- Belt, serpentine, automatic tensioner
- Brakes, oil disc, four-wheel, hydraulic
- Demand fan, hydraulic, swing-out
- Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain
- Differential lock/unlock, automatic
- Drain, engine oil, ecology
- Eco mode
- Electronic overspeed protection
- Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards
- Fuel tank, 394 L (104 gal), ground level access and sediment drain
- Parking brake - multi-disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Tandem drive
- Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)
electrical
- Alarm, back up
- Alternator, sealed 150 ampere
- Batteries, maintenance free, heavy duty, 1125 CCA
- Breaker panel, ground accessible
- Cab harness and electrical hydraulic valves
- Electrical system, 24V
- Grade Control Ready, cab harness, software, electrical hydraulic valves, bosses and brackets
- Lights, roof-mounted roading, reversing, LED stop, and tail
- Product Link
- Starter, electric
operator environment
- Accelerator
- Air conditioning with heater
- Arm and wrist rest, electronically adjustable
- Articulation, automatic return-to-center
- Cat Messenger operator information system
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauge, machine level
- Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF
- Hour meter, digital
- Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering
- Joystick, adjustable armrests
- Joystick gear selection
- Joystick hydraulic power steering
- Ladders, cab, left and right side
- Lights, night time cab
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready, entertainment
- Rollover protective Structure (ROPS) cab, sound suppressed 70 dB(A)
- Seat, cloth-covered, comfort suspension
- Seat belt, retractable 76 mm (3 in)
- Storage area for cooler/lunchbox
- Throttle control, electronic
- Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)
- Windows, tempered - left and right side wipers, rear and intermittent wiper
fluids
- Antifreeze
- Extended lifecoolant to -35° C (-30° F)
tires, rims, wheels
- Partial allowance for tires on 254 - 607 mm (10 - 24 in) multi-piece rims is included in the base machine price and weight
other
- Accumulators, brake, dual certified
- Anti-glare paint
- Bumper, rear, integrated with hitch
- CD ROM parts book
- Clutch, circle drive slip
- Cutting edges: - 152 16 mm (6 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts
- Doors (3), engine compartment, locking
- Drawbar, 6 shoes, replaceable wear strips
- Electrical hydraulic valves, hydraulic lines for base 8 functions
- Endbits, - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts
- Fluid check, ground level
- Frame, articulated, with safety lock
- Engine shutdown, ground level
- Hammer (emergency exit)
- Horn, electric
- Hydraulic lines for base functions
- Lockout, hydraulic implement (for roading and servicing)
- Moldboard
- Mounting, cab roof accessories
- Pump, hydraulic, high capacity
- Radiator, cleanout access (both sides with swing doors)
- Secondary steering
- Serviceability, left side
- (S·O·SSM) ports: engine, hydraulic, transmission, coolant, fuel
- Tandem walkway/guards
- Tool box
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
electrical
- Alternator, 280 ampere
- Batteries, extreme duty, 1,400 CCA
- Lights, high headlights
- Lights, low headlights
- Lights, working lights, basic
- Lights, working lights, plus, LED
- Lights warning, beacon or strobe
- Lights, mounting for warning light
guards
- Articulation guard
- Fenders, front
- Fenders, rear
- Front axle guard
- Sound suppression (bottom)
- Sound suppression (enclosure)
- Transmission
operator environment
- Mirrors, outside heated 24V
- Mirrors, outside mounted
- Comfort plus arrangement
- Comfort premium arrangement
powertrain
- All-wheel drive
- Precleaner, snow
- Starter, extreme duty, 1,000 amps
- Transmission, autoshift
other
- Attachment Ready Option (ARO)
- Integrated cross slope
- Accumulators, blade lift
- Camera, rearview
- Drain, ecology, engine Wiggins
- Heater, engine coolant: 120V
- Heater, engine coolant: 240V
- Hydraulic arrangements with one or more additional hydraulic valves available for rear ripper, dozer, snow plow and snow wing
- Snow wing mounting, frame ready
- Starting aid, ether
- Reversing fan, automatic or manual
- Cat Grade with 3D
attachments
- Blade extension, left, 610 mm (2 ft)
- Blade extension, right hand, 610 mm (2 ft)
- Counterweight
- Cutting edges, curved
- Endbits, overlay
- Front lift group, mounting
- Front lift group, mechanical
- Grader bit, narrow and super penetration
- Mid-mount scarifier, package
- Moldboard: 4267 mm x 610 mm x 22 mm (14 ft x 24 in x 7/8 in)
- Moldboard: 4267 mm x 686 mm x 25 mm (14 ft x 27 in x 1 in)
- Moldboard: 4877 mm x 686 mm x 25 mm (16 ft x 27 in x 1 in)
- Push plate
- Ripper, rear
- Ripper tooth
- Scarifier, front
- Snow arrangement
- Snow wing ready package
- Tow hitch
