At a glance data:
Maximum Power:
800hp
Maximum Torque:
2736lb-ft @ 1300 rpm
Rated Speed:
1800
Minimum Power:
755hp
Overview

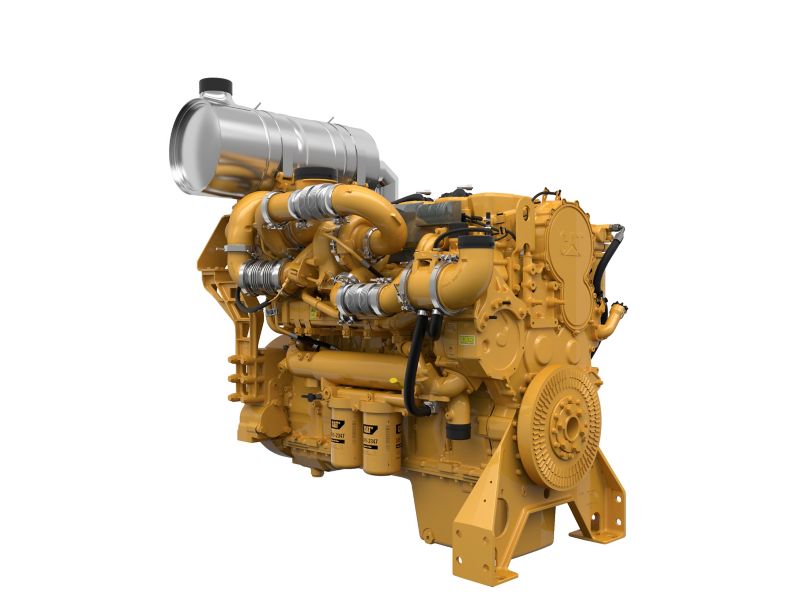

This Cat® C18 engine variant equipped with a serial twin turbocharged-aftercooled system is capable of achieving power between 563-597 kW (755-800 hp) @ 1800 rpm while meeting EU Stage V emission standards.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Cat
Brand:
Cat
Power Rating
Maximum Power:
800hp
Maximum Torque:
2736lb-ft @ 1300 rpm
Rated Speed:
1800
Minimum Power:
755hp
Emission Standards
Emissions:
EU Stage V
General
Number of Cylinders:
6 vertical in-line
Displacement:
1104.5in³
Aspiration:
Series Twin Turbocharged Aftercooled (TTA)
Bore:
5.7in
Stroke:
7.2in
Combustion System:
Direct Injection (MEUI)
Compression Ratio:
16.0:1
Aftertreatment:
DOC+DPF+SCR or DOC
Rotation from Flywheel End:
Anti-clockwise
Cooling System:
Liquid
Engine Dimensions*
Length:
61in
Width:
45in
Height:
53in
Dry Weight:
3875lb
Wet Weight:
3945lb
Disclaimer
Note 1:
*Final dimensions dependent on selected options
Standard Equipment
Optional Equipment
