At a glance data:
Engine Model:
Cat® C18
Net Power - SAE J1349:2011:
496hp
Rated Speed:
1900.0r/min
Peak Power Speed:
1500.0r/min
Overview

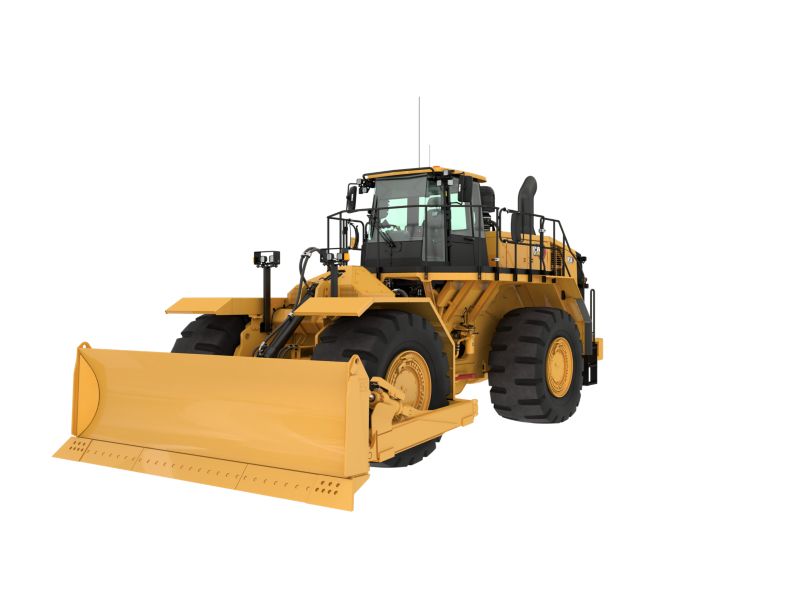

Designed with performance in mind, the Cat® 834 Wheel Dozer delivers fast speeds for quick travel and cleanup on your jobsite. Improved efficiency and more productivity get the job done quickly and with less emissions. Simplified serviceability makes for a long lifecycle, low owning and operating costs, and more uptime.
Category:
Wheel Dozers
Category:
Wheel Dozers
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C18
Net Power - SAE J1349:2011:
496hp
Rated Speed:
1900.0r/min
Peak Power Speed:
1500.0r/min
Gross Power - SAE J1995:2014:
562hp
Bore:
5.7in
Stroke:
7.2in
Displacement:
1105.0in³
Peak Torque - 1,300 rpm:
2092.0lb/ft
Torque Rise:
52.0%
Note (1):
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Note (2):
The following engine configurations are available: – Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. – Noncertified that emits equivalent to U.S. EPA Tier 3.
Operating Specifications
Operating Weight:
105271.0lb
Blade Capacities:
7.9 – 22.2 m3 (10.3 – 29.0 yd3)
Transmission
Transmission Type:
Cat planetary power shift
Forward - 1:
4.2mile/h
Forward - 2:
7.2mile/h
Forward - 3:
12.6mile/h
Forward - 4:
22.0mile/h
Reverse - 1:
4.2mile/h
Reverse - 2:
7.6mile/h
Reverse - 3:
13.3mile/h
Direct Drive - Forward 1:
Lock-up disabled
Direct Drive - Forward 2:
7.7mile/h
Direct Drive - Forward 3:
13.7mile/h
Direct Drive - Forward 4:
23.9mile/h
Direct Drive - Reverse 1:
4.5mile/h
Direct Drive - Reverse 2:
8.1mile/h
Direct Drive - Reverse 3:
14.3mile/h
Note:
Travel speeds based on 35/65-R33 tire
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit:
Pilot operated LS valve with EH
Lift/Tilt System:
Variable displacement piston
Maximum Flow at 1,900 rpm:
153.0gal/min
Relief Valve Setting - Lift/Tilt:
4641.0psi
Cylinders, Double Acting - Lift, Bore and Stroke:
139.75 mm × 1021 mm (5.5 in × 40.2 in)
Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke:
140 mm × 230 mm (5.5 in × 9.1 in)
Pilot System:
Variable displacement piston
Pilot Maximum Flow:
13.7gal/min
Pilot Relief Valve Setting:
580.0psi
Hydraulic System - Steering
Steering System - Circuit:
Pilot, load sensing
Steering System - Pump:
Piston, variable displacement
Maximum Flow:
65.8gal/min
Relief Valve Setting - Steering:
3495.0psi
Total Steering Angle:
86.0°
Steering Cycle Times - High Idle:
3.1s
Steering Cycle Times - Low Idle:
5.7s
Service Refill Capacities
Fuel Tank:
209.5gal (US)
Cooling System:
31.7gal (US)
Crankcase:
15.9gal (US)
Diesel Exhaust Fluid Tank:
8.7gal (US)
Transmission:
31.7gal (US)
Hydraulic System Factory Fill:
63.4gal (US)
Differential - Final Drives - Front:
49.1gal (US)
Differential - Final Drives - Rear:
49.1gal (US)
Hydraulic System - Tank Only:
37.0gal (US)
Note (1):
All non-road Tier 4 Final/Stage V diesel engines are required to use: – ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. • For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: • 100% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
Axles
Front:
Fixed
Rear:
Trunnion
Oscillation Angle:
±13°
Brakes
Brakes:
ISO 3450: 2011
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008):
72dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
109dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 3 / Stage IIIA
Operator Sound Pressure Level (ISO 6396:2008):
72dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
110dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Dimensions
Height - Top of Exhaust Stack:
15.9ft
Height - Top of Air Cleaner:
12.8ft
Height - Top of Hood:
10.9ft
Ground Clearance - Bumper:
3.1ft
Centerline of Rear Axle to Edge of Bumper:
10.5ft
Wheel Base:
14.9ft
Length - Front of Tire:
28.4ft
Length - Straight Blade on Ground:
32.6ft
Length - Universal Blade on Ground:
34.4ft
Centerline of Front Axle to Hitch:
7.5ft
Ground Clearance:
1.7ft
Height - Top of Cab:
13.7ft
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
electrical
- Alarm, back-up
- Alternator, single (100 amp)
- Batteries, dry
- Hazardous voltage lamp
- Converter, 10/15 amp, 24V to 12V
- Lighting system, (LED work lights, access and service platform lighting)
- Starting and charging system, 24V
- Auxiliary jump start receptacle
operator environment
- Air conditioner
- Starter lockout in bumper
- Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
- Cat Vision, rear-vision camera system
- Graphical information display, displays real time operating information, performs calibrations and customizes operator settings
- CB radio ready
- Tilt, tip controls
- Heater and defroster
- Horn, electric
- Light, cab (dome)
- Lights, directional
- Lunchbox and beverage holders
- Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles, cycle timer, integrated payload control system
- Radio, AM/FM/CD/MP3 Bluetooth®
- Instrumentation, gauges: - coolant temperature, engine hour meter, hydraulic oil temperature, powertrain oil temperature
- Mirrors, rearview (externally mounted)
- Rimpull control system (RCS)
- Seat, deluxe
- Seat belt, retractable, 76 mm (3 in) wide
- Steering and transmission integrated control (STIC™) system
- UV glass
- Operator presence
- Wet-arm wipers/washers (front and rear)
- Intermittent front and rear wipers
powertrain
- Brakes, oil-cooled, multi-disc, service/secondary
- Automatic retarding controls
- Case drain screens
- Engine, Cat C18 MEUI™, diesel, turbocharged/aftercooled
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to -34°C (-29°F)
- Electro hydraulic parking brake
- Turbine precleaner, engine air intake
- Radiator, Aluminum Modular Radiator (AMR)
- Manual switch and automatic fuel priming
- Starting aid (ether) automatic
- Throttle lock, electronic
- Torque converter, impeller clutch (ICTC) with lock-up clutch (LUC) and rimpull control system (switch and dial in cab)
- Transmission, planetary, power shift (4F/3R) electronic control
additional equipment
- Doors, service access (locking)
- Hitch, drawbar with pin
- Oil sampling valves
- Rear access to cab and service platform
- Steering, load sensing
- Vandalism protection caplocks
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
powertrain
- -50° C (-58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine brake
- High ambient cooling-software
- Turbine precleaner, engine air intake dual stage
- Axle oil cooler
- Crankcase guards
operator environment
- Cab precleaner
- Radio, AM/FM/CD/MP3 Bluetooth with Satellite SiriusXM
- Seat, Premium Plus containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness, dynamic end dampening and leather finish
- LED warning strobe
- Window pull down visor
- Cat Detect (object detection system)
additional equipment
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
