At a glance data:
Standard - Operating Weight:
28958lb
Maximum Operating Weight:
30391lb
Standard Compaction Width:
84in
Drum Offset:
6in
Overview

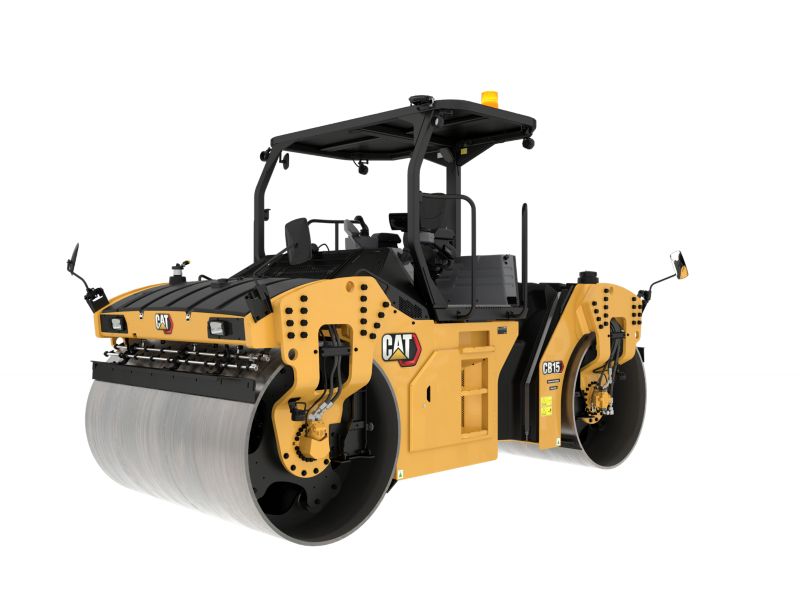

The CB15 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degree seating option make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Standard - Operating Weight:
28958lb
Maximum Operating Weight:
30391lb
Operating Specifications
Standard Compaction Width:
84in
Drum Offset:
6in
Curb Clearance:
28in
Ground Clearance:
11.5in
Weights
Static Linear Load:
186lb/in
Engine
Engine Model:
Cat_C4.4
Gross Power:
142hp
Travel Speeds
High:
8mile/h
Low:
4mile/h
Dimensions
Overall Length:
15.5ft
Wheel Base:
11.25ft
Height - With ROPS/FOPS:
10ft
Overall Width:
92in
Vibratory System
Centrifugal Force per Drum - Maximum:
31069lb
Centrifugal Force per Drum - Minimum:
12409lb
Maximum Amplitude:
0.041in
Minimum Amplitude:
0.01in
Maximum Frequency:
2520VPM
Minimum Frequency:
2520VPM
Vibration Selection:
Independent per drum, front only, rear only, both
Service Refill Capacities
Fuel Tank Capacity:
66gal (US)
Water Spray Tank Capacity:
264gal (US)
Standard Equipment
operating environment
- 180 degree seat positioning with sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever with 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- 76 mm (3 in) high visibility seatbelt
- Vandalism protection
technology
- Product Link™ PLE743
- Remote Flash
- Remote Troubleshooting
powertrain
- Cat C4.4, 4-cylinder
electrical system
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Maintenance-free batteries
- Cat Electronic Technician (Cat ET)
- Remote start/charge receptacle
service and maintenance
- Maintenance-free Hitch
- 3 yr/3000 hr conventional vibratory system service interval
- 2 yr/2000 hr oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling
- Site gauges
safety
- Backup Alarm
- Warning horn (front & rear)
- LED Working Lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
operating environment
- 360 degree seat positioning with sliding station
- Steering wheel - elevated position, left side
- Suspension seat w/ heat
- Seat headrest
technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to machine communication
- Product Link PLE783
powertrain
- Offset hitch
vibratory system
- Biodegradeable hydraulic oil
- Five amplitude vibratory system
- Two amplitude/two frequency vibratory system
- Versa Vibe™ vibratory system
- Two amplitude/two frequency w/Oscillation vibratory system
- Versa Vibe w/Oscillation vibratory system
- Cocoa mats
- Mats - water distribution
- Freeze protection - water spray system
- Rear drum oscillation kit - field installed drum
safety
- LED Working Lights with turn signals
- LED Roading Lights
- Mirror package
- Steps, rear drum water spray refill
