At a glance data:
Engine Model:
Cat® C175-16
Overview

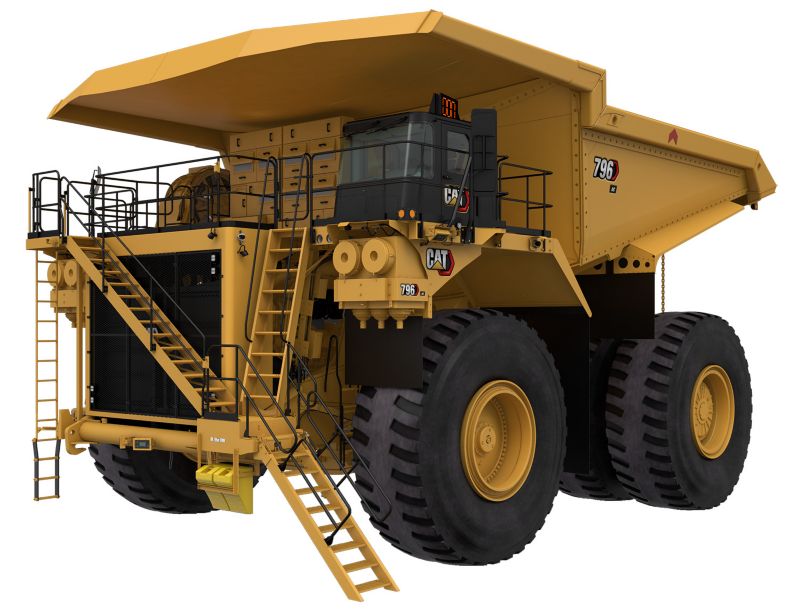

The Cat® 796 AC electric drive truck offers more flexibility than any other truck in its size class — delivering optimized performance and better productivity. Built on a proven truck architecture and high strength structures, the 796 AC delivers a nominal target payload of up to 327 tonnes (360 tons) regardless of attachments. Add in a proven drive system with industry-leading serviceability, and the 796 AC mining truck delivers a hauling solution you can depend on — resulting in high reliability, high availability, and low lifecycle costs. By hauling more every load, every cycle and every shift, it creates a low-cost-per-ton hauling operation that delivers a better bottom line.
Category:
Mining Trucks
Category:
Mining Trucks
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Gross Power - SAE J1995:
3500hp
Engine Model:
Cat® C175-16
Net Power - SAE J1349:
3405hp
Rated Speed:
1800r/min
Emissions Rating:
Fuel Optimized
Bore:
6.9in
Stroke:
8.7in
Displacement:
5187in³
Note (1):
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2):
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Note (3):
Additional fuel optimized selectable power ratings: 2312 kW / 3,100 hp
Weights - Approximate
Rated Gross Machine Weight:
1270000lb
Chassis Weight:
448415lb
Body Weight Range:
38 833 – 42 907 kg (85,611 – 94,594 lb)
Note (1):
Consult your tire manufacturer for maximum tire load.
Note (2):
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3):
Refer to Cat Mining Truck 10/10/20 Overload Policy (AEXQ0250) for maximum gross machine weight limitations
Nominal Rated Payload:
360ton (US)
Weight Distributions - Approximate
Front Axle - Empty:
47%
Rear Axle - Empty:
53%
Front Axle - Loaded:
33%
Rear Axle - Loaded:
67%
Note:
Weight distributions optimized with Cat body.
AC Drive System
Total Reduction Ratio:
35:01:00
Top Speed - Loaded:
40mile/h
Generator/Alternator:
Cat brushless, engine mounted, dual bearing
Controls:
Cat IGBT Inverter Technology, air cooled, pressurized cabinet with filtration
Wheel Motor:
Cat AC induction, rear axle mounted
Cooling System:
Cat variable speed, hydraulically driven cooling system
Tires
Standard Tires:
59/80 R63
Rims:
44" x 63"
Note (1):
Quick Change Rims optional.
Note (2):
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Braking System
Service Brakes:
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area:
20378in²
Rear - Wet Disc Brake Surface Area:
30750in²
Standards:
Service and Secondary: ISO 3450:2011
Parking Brake:
Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Load Brake:
Rear service brakes
Dynamic Retarding Power - Continuous:
5480hp
Note:
Anti-Lock Brake System (ABS) optional with CMD package
Capacity - HE Body - 100% fill factor
Struck:
97-153 m³ (127-200 yd³)
Heaped (SAE 2:1):
186-237 m³ (243-310 yd³)
Note:
Consult your local Cat dealer for body recommendations.
Body Hoists
Type:
Twin, two-stage hydraulic cylinders with snubbing valve.
Pump Flow - High Idle:
257.3gal/min
Relief Valve Setting - Raise:
3029psi
Body Raise Time - High Idle:
21s
Body Lower Time - Float:
22s
Body Power Down- High Idle:
17.5s
Note (1):
Twin, two-stage hydraulic cylinders mounted outside main frame; double-acting cylinders in both stages.
Note (2):
Power raise in both stages; power down capability in both stages.
Note (3):
Automatic body-lower modulation reduces impact on frame.
Suspension
Type:
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
Effective Cylinder Stroke - Front:
4in
Effective Cylinder Stroke - Rear:
2in
Rear axle - Oscillation:
+/- 5.32 degrees
Service Refill Capacities
Fuel Tank:
1300gal (US)
Fuel Tank (Tier 4):
1200gal (US)
Diesel Exhaust Fluid Tank:
100gal (US)
Cooling System:
211gal (US)
Crankcase:
82gal (US)
Front Wheels - Each:
7gal (US)
Final Drive - Each:
67gal (US)
Hydraulic Tank:
296gal (US)
Hydraulic System - Including Tank:
385gal (US)
Grease Tank:
90lb
Note (1):
DEF Tank only available for U.S. EPA Tier 4 Final / EU Stage V engine option
Cab
Air Conditioning:
HFC - 134A refrigerant: 21,600 Btu/h
Heater / Defroster:
24600Btu/h
Note:
Ambient capabilities down to -15C (5F) for heater/defroster and up to 50C (122F) for air conditioning.
ROPS Standards (1):
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.
FOPS Standards:
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.
Sound
Sound Standards:
The operator sound pressure level, 75 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.
Steering
Steer Angle:
39°
Turning Diameter - Front:
106.3ft
Steering Standards:
ISO 5010:2019
Note:
Turning Diameter (ISO 7457:1997)
Dimensions (Approximate)
Height - Top of ROPS:
22.05ft
Overall Length:
51.44ft
Wheel Base:
21.9ft
Rear Axle - Tail:
16.07ft
Dump Clearance - Empty:
5.72ft
Loading Height - Empty:
23.85ft
Overall Height - Body Raised:
48.85ft
Centerline Front Tire Width:
23.06ft
Front Axle Clearance - Loaded:
2.81ft
Overall Canopy Width (with rock deflectors):
33.15ft
Outside Body/Canopy Width (without rock deflectors):
31.62ft
Inside Body Width:
29.44ft
Front Canopy Height - Empty:
26.01ft
Rear Axle Clearance - Loaded:
2.8ft
Centerline of Rear Dual Tire Width:
19.5ft
Overall Tire Width - Empty:
30.27ft
Note:
Dimensions listed includes canopy deflectors
Standard Equipment
power train
- Cat® C175-16 Diesel Engine: 2610 kW (3,500 hp) Fuel Optimized , U.S. EPA Tier 2 equivalent (available for applicable markets)
- Cat® C175-16 Diesel Engine: 2610 kW (3,500 hp) U.S. EPA Tier 4 Final / EU Stage V (available for applicable markets)
- C175-16 Diesel Engine
– Turbocharging (4) / Aftercooled (ATAAC)
– Centrifugal oil filter
– Self-cleaning oil filter
– Charging Alternator (225 amp), brushless
– Pre-lubrication/engine
– Air cleaner with precleaner (4)
– Multi-point oil pressure sensing
– Exhaust - Muffler, Right Side Exit - Braking system:
– Electric dynamic retarding with blended low speed
– Oil-cooled, Multi-disc (front and rear) - Service, Parking, Secondary
– Load Brake (rear axle only)
– Extended Life Brake Disc Material
– Automatic Retarder Control (ARC)
– Brake Release Motor (towing) - Cat® AC Drivetrain:
– AC generator
– AC induction motors
– IGBT motor control
– Radial retarding grid with AC motor control
– Programmable top speed
– TorqueBoost technology
– Traction control system - Directional Shift Management:
– Body-up reverse neutralizer
– Body-up shift inhibitor
– Reverse shift inhibitor
– Neutral coast inhibitor
– Neutral start inhibitor - Additional Features:
– Rear axle continuous lubrication and filtration
– Rear axle continuous oil cooling
operation and controls
- Integrated ROPS/FOPS cab, insulated/sound suppressed
- Seat, operator, air suspension, adjustable, heated/cooled
- Seat, trainer, air suspension, adjustable
- Seatbelt, trainer, two point
- Steering wheel, tilt, telescopic, horn
- Horn, electric
- Directional shift lever
- Single Pedal Retarding & oil-cooled brake control
- Automatic Retard Control (ARC) toggle switch
- Load brake switch
- Windshield with tinted/safety glass
- Window, electric powered, operator/passenger
- Windshield Wipers (2), intermittent control and washer
- Visor (2)
- Storage rear of seats
- Cup holder (2)
- Dome courtesy light
- Entertainment radio ready with speakers and wiring harnesses
- Converter, 12V
- 12V DC power supply (1)
- Mirrors, standard (Left-Flat, Right-Convex)
- Fixed access ladder, left hand ground access
- HVAC:
– Pressurized, filtered environment
– Air conditioner
– Heater/defroster - Metric or English gauges:
– Speedometer
– Tachometer
– Electric hour meter
– Fuel level
– DEF level (U.S. EPA Tier 4 Final / EU Stage V engines only)
– Hydraulic oil temperature
– Engine coolant temperature - Service & Information:
– Diagnostic connection port
– Electric engine control fault indicator
– Alarm, Park brake / open operator door
– Third party telematics port
– VIMS message center advisor
electrical
- Audible Alarm, backup
- Electrical system, 24V with fuses and breakers
- Batteries, 12V (8) 90 amp hour
- Ground level Battery charge receptacle
- Lighting, signals/service:
– Headlights (4 low beam, 4 high beam), LED
– Backup and marker/hazard, LED
– Directional signals (front and rear), LED
– Front stair access/service deck, LED
– Stop/tail lights, LED
– Engine compartment, LED
– Inverter energy warning lights, LED - Payload indicator, red/green
- Payload, digital display
additional features and equipment
- Accumulators (Steering & Brake) – Australian and Canadian certified
- Automatic lubrication system
- Rotating component guards
- Mud Flaps
- Tow hooks and pins (front)
- Tow pin (rear) (empty truck only)
- 44 x 63 rims, six position (6)
- Fueling:
– 4922 L (1,300 gal) fuel tank (Fuel optimized engines only)
– 4543 L (1,200 gal) fuel tank (U.S. EPA Tier 4 Final / EU Stage V engines only)
– 379 L (100 gallon) DEF tank (U.S. EPA Tier 4 Final / EU Stage V engines only)
– Fuel filter with water separator
– 210 GPM Fast fill fuel system (Left and Right) - Service:
– Engine service platforms (2)
– ANSI or ISO service instructions
– S•O•S℠ sample points (hydraulic oil, engine coolant, engine oil)
– Ground level machine lockout (battery)
– Ground level engine shut-down
– Drivetrain lockout
– Engine start lockout
– Auxiliary "buddy" dumping quick connect
– Auxiliary steering quick connect (towing)
cat® technology products
- Cat® MineStar™ Detect (Radar and Camera) System
- Cat® Product Link™ Elite (Cellular)
dump body
- High Efficiency (HE) body, 186-237 m³ (243-310 yd³)
– HE Body Mounting Group
– Rock ejectors (chain)
antifreeze
- Cat Extended Life Coolant (ELC) protects to –35° C (–30° F)
Optional Equipment
power train
- Cat® C175-16 Diesel Engine: 2312 kW (3,100 hp) power setting (Fuel optimized / U.S. EPA Tier 2 equiv. engines only)
- Cat® C175-16 Diesel Engine: 2050 kW (2,750 hp) power setting (Fuel optimized & U.S. EPA Tier 4 Final / EU Stage V engines)
- Body heat exhaust
operation and controls
- Throttle lock
- Timer, engine shutdown
- Heated mirrors (Left and Right)
- Powered access ladder, left hand ground access
- Language monitors: English, Spanish, Italian, Portuguese, Dutch, Norwegian, Swedish, Estonian, Latin, Lithuanian, Slovakian, Slovenian, Greek, Romanian, Russian, Polish, Czech, Hungarian, Icelandic, Finnish, Danish, Thai, Indonesian, Vietnam, Malaysian, Chinese
electrical
- Lighting, signals/service:
– Fog lights, LED
– Work lights, LED
– Side profile lights, LED
– Dump body marker/stop lights, LED - Retarding indicator light, multi-color, cab exterior
additional features and equipment
- Fueling: 300 GPM Fast fill fuel system (Left and Right)
- Portable fire extinguisher
- Front bumper single-point center tow
- Wheel chocks (ANSI and ISO)
- 44 x 63 rims, quick change (2 quick change, 4 standard)
- Service:
– Inverter platform (rear access)
– Service Center, fast-fill
cat® technology products
- Cat® MineStar™ Detect (Camera Only) System
- Cat® Product Link™ Elite (Satellite)
- Cat® MineStar™ Health
- Cat® MineStar™ Fleet
- Cat® MineStar™ Terrain
- Cat® MineStar™ Command-Ready
- Cat® MineStar™ Command
- Cat® Trolley Assist Attachment
dump body
- HE rock box liner
- HE canopy rock deflectors
- HE rear tire rock deflectors
- HE impact liner
antifreeze
- Antifreeze/coolant protects to –50° C (–58° F)
