At a glance data:
Drive Shaft Torque at Maximum Pressure:
3038.8lb/ft
Drive Method:
Gerotor Motor - Single Planetary Reduction
Mounting Bracket Design:
3 Ton Mini Excavator Pin On
Required Hydraulics:
Standard Flow
Overview

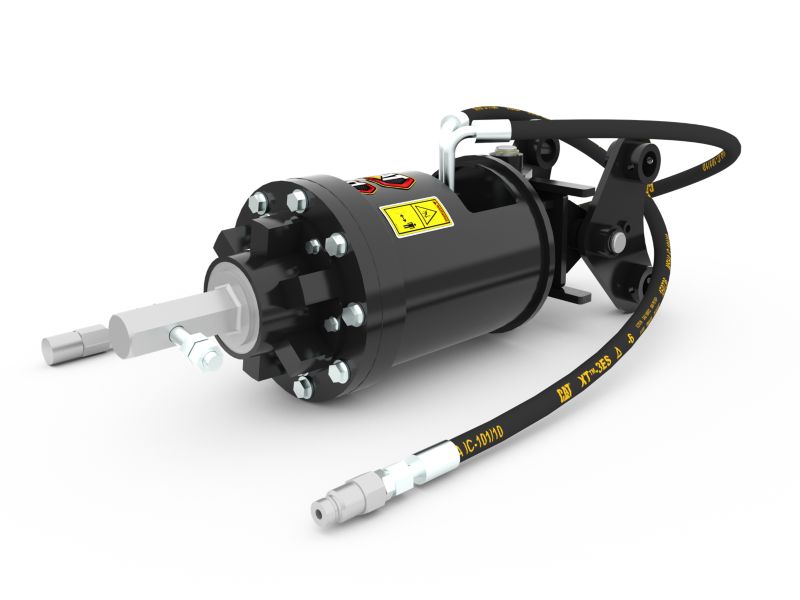

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.
Category:
Augers
Category:
Augers
Brand:
Cat
Brand:
Cat
Drive Shaft Torque at Maximum Pressure: 3038.8lb/ft
Drive Shaft Torque at Maximum Pressure:
3038.8lb/ft
Drive Method: Gerotor Motor - Single Planetary Reduction
Drive Method:
Gerotor Motor - Single Planetary Reduction
Mounting Bracket Design: 3 Ton Mini Excavator Pin On
Mounting Bracket Design:
3 Ton Mini Excavator Pin On
Required Hydraulics: Standard Flow
Required Hydraulics:
Standard Flow
Optimal Hydraulic Flow: 42-83 L/min (11-22 gpm)
Optimal Hydraulic Flow:
42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure: 145-235 bar (2100-3400 psi)
Optimal Hydraulic Pressure:
145-235 bar (2100-3400 psi)
Overall Width - With Bracket: 11.8in
Overall Width - With Bracket:
11.8in
Overall Length - With Bracket: 11.1in
Overall Length - With Bracket:
11.1in
Overall Height: 34.4in
Overall Height:
34.4in
Housing Diameter: 11in
Housing Diameter:
11in
Swing Range (fore/aft): 72 degrees
Swing Range (fore/aft):
72 degrees
Swing Range (L/R): 76 degrees
Swing Range (L/R):
76 degrees
Weight: 202.8lb
Weight:
202.8lb
Motor Displacement: 15.26in³
Motor Displacement:
15.26in³
Bit Speed at Maximum Flow: 71 rpm
Bit Speed at Maximum Flow:
71 rpm
Hex Output Shaft Size: 2in
Hex Output Shaft Size:
2in
