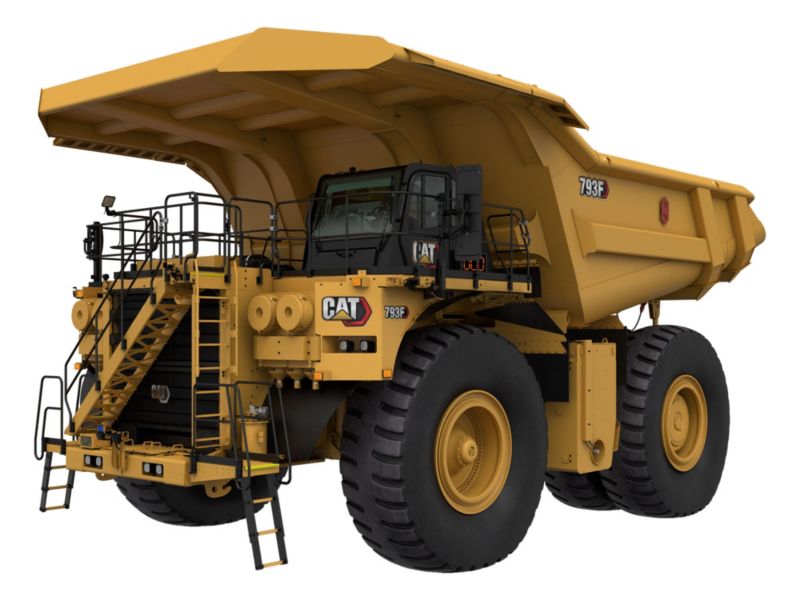

793F Mining Truck

At a glance data:

Engine Model:
Cat® C175-16

Overview

What will it take to boost your bottom line? An engine that delivers more power and performance for an increase in productivity? A class-leading empty weight that leads to optimized payload? A longer life for high operating hours and reduced costs? The opportunity to reap the significant productivity and efficiency benefits from industry-leading automation? With the Cat® 793F Mining Truck, you get all this — and more. This popular industry workhorse is the ideal choice for a wide variety of applications. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.

Category:
Mining Trucks

Brand:
Caterpillar

Engine

Gross Power - SAE J1995:
2650hp
Net Power - SAE J1349:
2478hp
Engine Model:
Cat® C175-16
Rated Speed:
1750r/min
Emissions:
Fuel Optimized
Bore:
6.9in
Stroke:
8.7in
Displacement:
5187in³
Note (1):
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2):
EPA Tier 4 Final / EU Stage V available for applicable markets.

Weights - Approximate

Rated Gross Machine Weight:
851000lb
Chassis Weight:
265639lb
Body Weight:
67682lb
Note (1):
Consult your tire manufacturer for maximum tire load
Note (2):
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3):
Refer to the Cat Mining Truck 10/10/20 Overload Policy for maximum gross machine weight limitations.
Nominal Rated Payload:
256ton (US)

Final Drives

Differential Ratio:
1.8:1
Planetary Ratio:
16:01
Total Reduction Ratio:
26.8:1

Transmission

Forward - 1:
8mile/h
Forward - 2:
10.8mile/h
Forward - 3:
14.8mile/h
Forward - 4:
19.9mile/h
Forward - 5:
27.1mile/h
Forward - 6:
37.3mile/h
Reverse:
7.3mile/h
Top Speed - Loaded:
37.3mile/h

Tires

Standard Tires:
40.00 R57
Rims:
29" or 32"
Note:
Quick Change Rims optional.
Note (1):
Extended life wheel stations optional.
Note (2):
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.

Suspension

Type:
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments

Braking System

Service Brakes:
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area:
13921in³
Rear - Wet Disc Brake Surface Area:
20,847in³
Standards:
(Service and Secondary): ISO 3450:1996
Parking Brakes:
Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Load Brake:
Rear service brakes
Note:
Anti-Lock Brake System (ABS) optional with CMD package

Capacity - HP Body - 100% Fill Factor

Note (1):
Contact your local Cat dealer for body recommendation.
Struck:
112.6-151 m³ (147-197.5 yd³)
Heaped (SAE 2:1)*:
162-191 m³ (212-250 yd³)
Note (2):
*ISO 6483:1980

Capacity - MSD II - 100% Fill Factor

Note:
Contact your local Cat dealer for body recommendation.
Struck:
112-142 m³ (146-186 yd³)
Heaped (SAE 2:1):
159-190 m3 (209-250 yd3)

Body Hoists

Type:
Twin, two-stage hydraulic cylinders with snubbing valve

Brakes

Brake Surface - Front:
13921in²
Brake Surface - Rear:
20847in²
Standards:
J-ISO 3450 JAN88, ISO 3450:1996

Body Hoists

Pump Flow - High Idle:
224gal/min
Relief Valve Setting - Raise:
2955psi
Body Raise Time - High Idle:
19s
Body Lower Time - Float:
20s
Body Power Down - High Idle:
17.5s

Suspension

Effective Cylinder Stroke - Front:
5.1in
Effective Cylinder Stroke - Rear:
4.2in
Rear axle - Oscillation:
±4.9 degrees

Cab

Air Conditioning:
Air Conditioning (HFC - 134A refrigerant): 24,300 Btu/hr
Heater / Defroster:
38900Btu/h
Note:
Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
ROPS Standards (1):
The operator sound pressure level, 76 dB(A), complies with ISO 6394 and ISO 6396.
ROPS Standards (2):
ROPS (Rollover Protective Structure) meets ISO 3471:1994 criteria.
FOPS Standards:
FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II criteria.

Sound

Sound Standards:
The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 76 dB(A) for cab offered by Caterpillar, when properly installed and maintained and tested with doors and windows closed.

Steering

Steer Angle:
36°
Turning Diameter - Front:
93.2ft
Steering Standards:
SAE J15111 OCT90, ISO 5010:1992

Weight Distributions - Approximate

Front Axle - Empty:
48%
Rear Axle - Empty:
52%
Front Axle - Loaded:
33%
Rear Axle - Loaded:
67%

Service Refill Capacities

Fuel Tank:
750gal (US)
Fuel Tank - Optional:
1300gal (US)
Diesel Exhaust Fluid Tank:
62gal (US)
Cooling System:
284gal (US)
Crankcase:
82gal (US)
Rear Axle - Housing:
260gal (US)
Steering System - Including Tank:
77gal (US)
Brake Hoist System - Includes Tank:
347gal (US)
Torque Converter - Transmission Sump:
27gal (US)
Torque Converter/Transmission System - Including Sump:
55gal (US)
Note (1):
DEF Tank only available for EPA Tier 4 engine option.

ROPS

FOPS Standards:
FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II FOPS criteria.

Sound

Sound Standards (1):
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.

Standard Equipment

electrical

  • Alarm, Back-up
  • Brushless Alternator, 150 ampere
  • Batteries, 210-amp hour, low maintenance, 12-volt (2)
  • Converter, 12-volt electrical
  • Electrical System, 24-volt, 10, 15 and 20 amp
  • Jump Start Receptacle
  • Lighting System
    – Back-up and Hazard Lights
    – Directional Signals (front and rear LED)
    – Front Stair Access/Service Deck
    – Stop/Tail Lights (LED)
    – Engine Compartment
    – VIMS, Blue Light (LED)
    – Headlights, with Lo-Hi Beam Selector
    – Brake and Retarder Light Status Ready

operator environment

  • Air Conditioner with Automatic Climate Control
  • 12-volt DC Power Supply (3)
  • Coat Hook
  • Cup Holder
  • Diagnostic Connection Port
  • Dome Courtesy Light
  • Entertainment Radio Ready
    – 5 amp Converter, Speakers and Wiring Harness
  • Fire Suppression Ready Cab
  • Gauge/Indicators
    – Gauge Panel: Transmission Fluid Temperature, Brake Oil Temperature, Engine Coolant Temperature, Fuel Level, Torque Converter Oil Temperature
    – Electric Engine Control Fault Indicator
    – Electric Hour Meter
    – Speedometer
    – Tachometer
    – Diesel Exhaust Fluid Level Indicator (Tier 4 option only)
  • Heater/Defroster, 11 070 kCal (45,930 Btu)
  • Heated Mirrors, Right and Left
  • Hoist, Body Control (electric)
  • Horn
  • Integrated Object Detection System
  • Plug and Play Radio 12V Unswitched Power Supply Outlets
  • ROPS Cab, Insulated/Sound Suppressed
  • Seat, Operator, Air Suspension
  • Seatbelt, Operator, Three Points, Retractable
  • Seatbelt, Trainer, Two Points, Retractable
  • Stairway and Walkway Access, 600 mm (23.6 in)
  • Steering Wheel, Tilt, Padded, Telescopic
  • Storage Compartments
  • Tinted Glass
  • Transmission Gear Indicator
  • VIMS Message Center with Advisor
  • Window, Operator, Electric Powered
  • Windshield Wiper, Intermittent Control and A/C Condenser Filled Washer Bottle

power train

  • Cat C175-16 Engine
    – Air Cleaner with Precleaner (4)
    – Air-to-Air Aftercooler (ATAAC)
    – Automatic Starter Protection
    – Multi-Point Oil Pressure Sensing
    – Turbocharging (4)/Aftercooled
  • Braking System
    – Automatic Retarder Control, Adjustable
    – Brake Release Motor (towing)
    – Engine Overspeed Protection
    – Extended Life Brake Disc Material
    – Oil-cooled, Multi-disc (front and rear)
    – Service, Retarding, Parking, Secondary: Park Brake Integrated with Gear Selector, Secondary, Emergency
  • Tier 4 option: Engine Aftertreatment System: Pump Electronic Tank Unit (PETU), Clean Emissions Module (CEM)
  • Transmission
    – 6-speed, Automatic Powershift with Electronic Control (ECPC)
    – Body-up Reverse Neutralizer
    – Body-up Shift Inhibitor
    – Controlled Throttle Shifting
    – Directional Shift Management
    – Downshift/Reverse Shift Inhibitor
    – Individual Clutch Modulation
    – Lock-up Torque Converter
    – Neutral Coast Inhibitor
    – Neutral Start Switch
    – Programmable Top Speed
  • Pre-lubrication/Engine
  • Rear Axle Continuous Lubrication/Filtration
  • Advanced Productivity Electronic Controls Strategy (APECS)

other standard equipment

  • Auto Lubrication System with 41 kg (90 lb) Barrel, Auto Shutoff, and Grease Filter
  • Aux “Buddy” Dumping Quick Connect
  • Aux Steering Quick Connect (towing)
  • Driveline Guard
  • Fast Fill Fuel System, Fast Fill Diesel Exhaust Fluid System (Tier 4 option only)
  • Fuel Filter with Water Separator
  • Ground Level Battery Lockout
  • Ground Level Engine Shut-down
  • Ground Level Engine Start Lockout
  • Ground Level Transmission Lockout
  • Ground Level VIMS Data Port
  • Hi-speed Crankcase Oil Change
  • Hydraulic Filters, 1,000 hour
  • Portable Fire Extinguisher Mounting
  • Primary Access Anti-slip High Visibility Demarcations
  • Reservoirs (3 separate)
    – Brake/Hoist, Steering/Fan, Transmission/Converter
  • Road Analysis Control (RAC)
  • Rock Ejectors
  • Rubber-lined Battery Box Lid
  • Service Points, Ground Level
  • Sight Level Gauges for Hydraulic/Engine Oil
  • SL-V Grease Injectors
  • S•O•S℠ sample ports
  • Supplemental Steering (automatic)
  • Tie Down Eyes
  • Tie Off Points
  • Tow Hooks (front)/Tow Pin (rear)
  • Traction Control System
  • Vandalism Protection Locks
  • Vital Information Management System (VIMS)
    – Includes VIMS Payload Monitor with MAX Payload and Speed Manager
    – Recommend using download cable 127‑9797 and PC based software JERD2175. Supplemental software “VIMS Supervisor” YERA1403. Order separately. Computer not provided.

antifreeze

  • Extended Life Coolant to –35° C (–30° F)
