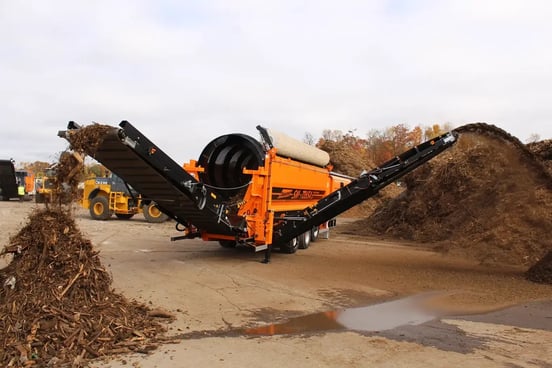

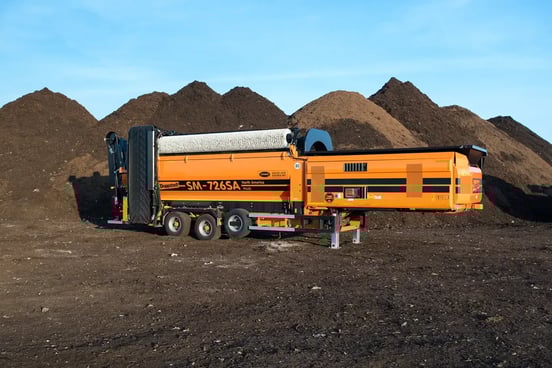

Doppstadt SM 726.2 SA Trommel Screen

At a glance data:

Chassis:
Fifth wheel, two axles
Drive:
Diesel Engine - Deutz TCD 3.6 L4. EPA Tier 5 Final
Power:
114HP (85kW)
Fuel Tank:
106 gallons

Overview

Want to optimize and grow your operation? The Doppstadt® SM 726.2 trommel screen is a marvel of engineering and a model of efficiency. The largest trommel screen in the Doppstadt SM series, the SM 726.2 SA delivers the most efficient, highest volume output of any trommel screen on the market.This mechanical beast of burden is the perfect option for operations that screen more than 1,000 yards of materials daily because it can be effectively used with a very wide range of applications and materials.With its modular design and intelligent operation, best-in-class 420 ft² screening area, and load-sensing feed, this machine is big enough to keep pace and efficient enough to make fuel costs a non-factor. Bigger is better. And sometimes, more efficient.

Category:
Screens

Brand:
Ecoverse

General Specifications

Chassis:
Fifth wheel, two axles
Drive:
Diesel Engine - Deutz TCD 3.6 L4. EPA Tier 5 Final
Power:
114HP (85kW)
Fuel Tank:
106 gallons

Standard Equipment

drive system

  • Engine: Deutz TCD 2.9 L4
  • Power Output: 75 hp / 55 kW
  • Fuel Tank Capacity: 80 gallons (diesel)
  • Emissions: Tier V final compliant

chassis

  • Configuration: Central axle
  • Feed Hopper Capacity: 6.5 yd³
  • Loading Height: 9' 6"

drum

  • Drum Length: 17'
  • Drum Diameter: 6'
  • Drum Diameter: 6'

conveyors

  • Side Conveyor Length: 18'
  • Side Conveyor Width: 32"
  • Rear Conveyor Length: 18'
  • Rear Conveyor Width: 32"

transport dimensions

  • Length: 36' 1"
  • Width: 8' 4"
  • Height: 13' 1"
  • Total Weight: 37,479 lbs
