At a glance data:
CHASSIS:
Steel tracks
POWER:
Diesel genset / electric plug in
DRIVE:
Electric
FUEL TANK:
108 gallons
Overview

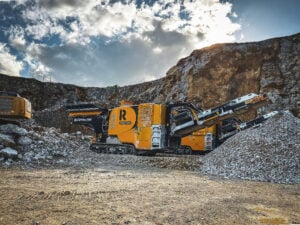

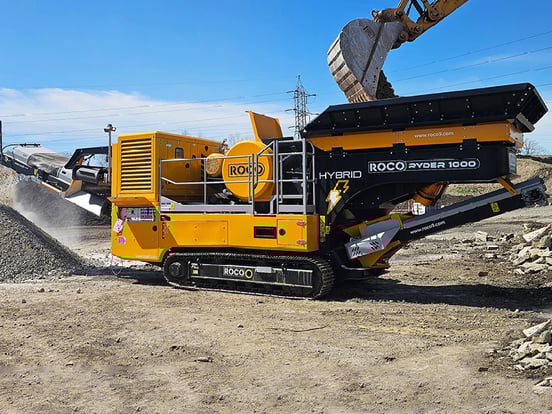

The Roco Ryder 1000 is a high-performance diesel-electric jaw crusher. With its unique 100% electric plug-in option, this crusher takes the lead as the first in its class, offering the flexibility to run on the electric grid or any 400v external power supply. Additionally, the RYDER boasts a dual power run option, thanks to its onboard Caterpillar generator power unit. Prepare to witness an unprecedented level of fuel efficiency that sets new industry standards!
Category:
Aggregate Equipment
Category:
Aggregate Equipment
Brand:
Roco
Brand:
Roco
General Specifications
CHASSIS:
Steel tracks
POWER:
Diesel genset / electric plug in
DRIVE:
Electric
FUEL TANK:
108 gallons
FEED HOPPER Volume:
7 yd^3
FEED HOPPER Length:
12ft 2in
FEED HOPPER Width:
8ft 2in
FEED HOPPER Loading Height:
11ft 2in
CRUSHER BOX Chamber:
37in x 24in
CRUSHER BOX Max Feed Size:
20in
DISCHARGE CONVEYOR Stockpile Height:
10ft
DISCHARGE CONVEYOR Angle:
18deg
DISCHARGE CONVEYOR Width:
39in
DISCHARGE CONVEYOR Hydraulic Folding:
Yes
RADIAL SIDE CONVEYOR Stockpile Height:
6ft 7in
RADIAL SIDE CONVEYOR Angle:
18deg
RADIAL SIDE CONVEYOR Width:
24in
RADIAL SIDE CONVEYOR Radial Option:
180o Radial option to discharge left or right
STANDARD INCLUSIONS:
LED Work Lights, Aux Power Outlets, Hardox Lined Feeder, Adjustable Overband Magnet, Reverse Crushing Option, Unblocking Crusher Toggle Switch, Hopper Extensions, Dust Suppression Sprinklers
OPERATING DIMENSIONS Length:
45ft 11in
OPERATING DIMENSIONS Width:
10ft 6in
OPERATING DIMENSIONS Height:
11ft 2in
TRANSPORT DIMENSIONS Length:
39ft 4in
TRANSPORT DIMENSIONS Width:
8ft 2in
TRANSPORT DIMENSIONS Height:
10ft 2in
TRANSPORT DIMENSIONS Weight:
64,000 Lbs.
OPTIONS:
Radio Control - Tracks & Feeder, Weigh Loader Scales / GPS
Standard Equipment
Optional Equipment
