At a glance data:
Engine Model:
Cat® C3.6
Power - Net:
92hp
Displacement:
220in³
Net Power - 2,200 rpm - SAE J1349:
92hp
Overview

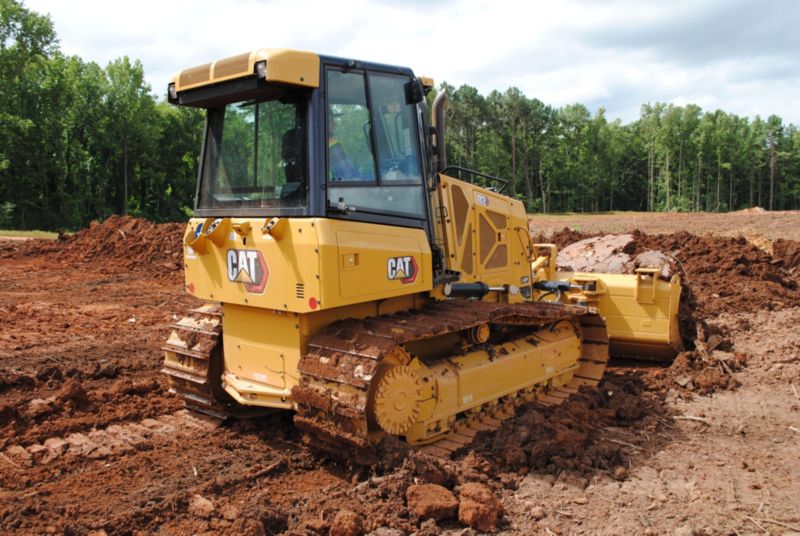

The Cat® D2 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.
Category:
Small Dozers
Category:
Small Dozers
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C3.6
Power - Net:
92hp
Displacement:
220in³
Net Power - 2,200 rpm - SAE J1349:
92hp
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269:
92hp
Note (1):
Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Engine
Power Train :
Hydrostatic
Engine
Note (2):
All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.
Weights
Operating Weight:
18382lb
Operating Weight:
18382lb
Operating Weight - LGP:
19066lb
Note (2):
For machine with ripper, add 554 kg (1,222 lb).
Note (1):
Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.
Cab
FOPS:
ISO 3449:2005 Level II
ROPS:
ISO 3471:2008
Transmission
Drive Pumps:
1
Maximum Travel Speed - Forward:
5.6mile/h
Relief Valve Settings:
7033psi
Maximum Travel Speed - Reverse:
6.2mile/h
Track Motors:
2
Undercarriage
Length - Track on Ground - LGP:
89in
Track Gauge:
61in
Number of Rollers - Each Side:
7
Track Gauge - LGP:
68in
Ground Pressure - LGP:
4.3psi
Shoe Width - Standard:
18in
Shoe Width - LGP:
25in
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage:
43
Undercarriage
Number of Shoes - Each Side - Abrasion Undercarriage :
38
Ground Pressure :
5.7psi
Length of Track on Ground :
89in
Service Refill Capacities
Fuel Tank:
51.5gal (US)
Crankcase - With Filter:
2.8gal (US)
Final Drive - Each - LGP:
2.6gal (US)
Cooling System:
5gal (US)
Transmission - Hydraulic Tank:
23.8gal (US)
Diesel Exhaust Fluid (DEF) Tank:
4.9gal (US)
Service Refill Capacities
Final Drives - Each Side :
2.6gal (US)
Hydraulic Controls
Pump Output:
17.2gal/min
Relief Valve Settings:
2988psi
Ripper
Type:
Parallelogram
Number of Shanks:
3
Height:
6.5in
Weight:
1222lb
Maximum Digging Depth:
13.3in
Maximum Ground Clearance Under Tip:
17.6in
Overall Width:
67.3in
Maximum Reach - Ground Line:
30.2in
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Dimensions
BLADE: Digging Depth - LGP:
23.2in
BLADE: Blade Cutting Edge Angle, Adjustable - LGP:
52° to 58°
BLADE: Blade Lift Height - LGP:
27.9in
BLADE: Blade Width - LGP:
124in
BLADE: Blade Width at Maximum Angle - LGP:
113.1in
Track Gauge - LGP:
67.9in
Ground Clearance - LGP:
13in
BLADE: Blade Height - LGP:
35.8in
Overall Length - With Blade - LGP:
168.2in
BLADE: Blade Capacity (SAE) - LGP:
2.42yd³
BLADE: Maximum Tilt - LGP:
17.2in
BLADE: Maximum Angle (either side) - LGP:
25°
Dimensions
BLADE: Maximum Angle (either side) - Standard :
25°
Ground Clearance - Standard :
13in
Overall Length - With Blade - Standard :
168.5in
Dimensions
Note:
Abrasion Undercarriage
Dimensions
BLADE: Blade Cutting Edge Angle, Adjustable - Standard :
52° to 58°
BLADE: Maximum Tilt - Standard :
15.2in
Track Gauge - Standard :
61in
BLADE: Digging Depth - Standard :
23.3in
BLADE: Blade Width - Standard :
109.5in
BLADE: Blade Lift Height - Standard :
29.3in
BLADE: Blade Capacity (SAE) - Standard :
2.59yd³
BLADE: Blade Width at Maximum Angle - Standard :
100.1in
Note :
With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
BLADE: Blade Height - Standard :
39.8in
Dimensions
Length of Basic Dozer (without blade) - LGP:
129.5in
Width of Dozer (standard shoes, no blade) - Standard:
79.1in
Dozer Height - LGP:
108.9in
Dozer Height - Standard:
108.9in
Width of Dozer (standard shoes, no blade) - LGP:
92.9in
Length of Basic Dozer (without blade) - Standard:
129.5in
Retrieval Winch
Maximum Line Speed - Full Drum:
79ft/min
Maximum Line Speed - Bare Drum:
50ft/min
Weight:
1747lb
Drum Capacity - Optional Cable:
195ft
Rope Diameter - Recommended:
0.63in
Winch Drive:
Hydraulic
Rope Diameter - Optional:
0.75in
Drum Capacity - Recommended Cable:
277ft
Maximum Line Pull - Full Drum:
20350lb
Speed:
Variable
Maximum Line Pull - Bare Drum:
32150lb
Control:
Hydraulic
Overall width:
27.91in
Drum Width:
9.65in
Drum Diameter:
8in
Winch Length:
35.63in
Throat Clearance:
5.6in
High Performance Winch
Maximum line pull – bare drum:
40000lb
Drum capacity – recommended cable:
371ft
Winch length:
27.76in
Overall width:
29.2in
Control:
Hydraulic
Maximum line speed – bare drum:
131ft/min
Maximum line speed – full drum:
207ft/min
Drum width:
10.8in
Drum capacity – optional:
256ft
Throat clearance:
6.75in
Weight:
1345lb
Rope diameter – recommended:
0.63in
Speed:
Variable
Maximum line pull – full drum:
25000lb
Drum diameter:
10in
Rope diameter – optional:
0.75in
Winch drive:
Hydrostatic
Standard Equipment
power train
- Air cleaner with precleaner, automatic dust ejection and under hood intake
- Aluminum bar plate cooling system (radiator, power train)
- Automatic traction control
- Cat C3.6 diesel engine
- Drive, auxiliary
- Dual path, closed loop, hydrostatic transmission
- Electric fuel pump
- Fuel/water separator
- Turbocharged aftercooled
electrical
- Alarm, backup
- Alternator, 150 amp, heavy duty
- Batteries, heavy duty, maintenance free, 1,000 CCA
- Diagnostic connector
- Four integrated front halogen lights, two rear halogen
- Horn, electric
- Starter, electric, 12 V, heavy duty
undercarriage
- Heavy Duty (HD) Undercarriage (43 section)
- Carrier rollers
- Guards, front/rear guiding
- Seven roller track frame
- Track adjusters, hydraulic
- Track rollers, lifetime lubricated
hydraulic
- Hydraulic pump and oil
- Single lever, three function control
- Three valve hydraulics
cat technology
- Low Slip Traction Control (included with ARO and Cat Grade 3D)
- Slope Indicate
- Cat Product Link™ PLE643/PLE743 Cellular
- Third party 3D grade system compatible
- Stable Blade – Basic Lift
- Slope Indicate
attachments
- Rigid drawbar
- Front pull device
operator environment
- Armrests, adjustable
- Coat hook
- Controls, seat mounted, fore/aft adjustment
- Cup holders
- Eco Mode
- Electronic Monitoring system with gauge:
– Chassis slope indication
– Diesel exhaust fluid (DEF)
– Engine coolant temperature
– Fuel level
– Hydraulic oil temperature - Electronic security system
- Engine air cleaner service indicator
- Engine RPM and gear display
- Floor mat, rubber, heavy duty
- Foot pads, dash
- Hour meter, electronic
- Independent forward/reverse speed settings
- Mirror, rearview, inside
- Power port, 12 volt
- ROPS/FOPS canopy
- Seat, air suspended, cloth or vinyl
- Seatbelt, hi-vis retractable 76 mm (3")
- Seatbelt buckling indicator/reminder
- Single pedal combining decel and brake functions
- Speed recall
- Storage compartment
- Throttle switch, rotary
- Travel speed limiter, electronic
Optional Equipment
power train
- Air cleaner with external precleaner
- Installation, winch
electrical
- Four integrated front LED lights, two rear LED
undercarriage
- Abrasion Undercarriage (38 section)
- Track Pairs
– Track, 460 mm (18 in)
– Track, 635 mm (25 in)
hydraulic
- Four valve for use with ripper
- Four valve for use with winch
cat technology
- Cat Grade with Slope Assist
- Cat Command Station (availability varies by region
- Cat Command Console (availability varies by region)
- Full-color 254 mm (10 in) touchscreen grade display
- Cat Product Link PLE683/PLE783 Cellular/Satellite
- Grade 3D with Assist includes:
– Same Assist with ARO features
– Steer Assist 3D
– Grade 3D - Assist with Attachment Ready Option (ARO) includes:
– Slope Indicate
– Blade Load Monitor
– Stable Blade Lift and Tilt
– Slope Assist
– Traction Control
– Steer Assist
– AutoCarry
attachments
- Drawbar, towing
- Machine security system
- Mounting, winch
- Ripper, parallelogram, includes three shanks and teeth
- Winch, hydraulic, high performance
- Winch, hydraulic, retrieval
operator environment
- Power Pitch
- Cab, with air conditioning
- Cab, polycarbonate windows and air conditioning
- Radio, AM/FM Bluetooth®
- Seat, air suspended, cloth or vinyl
- Seat, air suspension, choice of:
– Vinyl, heated seat with heated controls
– Cloth, heated seat with heated controls
– Cloth, heated and ventilated seat with heated controls - Sound suppression
other
- Heater, engine, coolant 120 V/240 V
- Starting aid, ether
